LED Headlamps - Warm White premium 12 & 24V LED Headlamp - APF P15D 30 base

Warm White premium 12 & 24V LED Headlamp - APF P15D 30 base

High quality 16 x Cree 2525 (with Hotsink) LED upgrade for American Pre-focus headlamp bulbs from the '30s and '40s with the P15D 30 double contact base. Extremely flexible application - suitable for 12 or 24V vehicles and compatible with either negative or positive earth systems. High and low beam - 1800 Lumen high beam, 1200 Lumen low beam - with a soft beam pattern.

One row of LEDs lights up on each side of the bulb for low beam and both rows of LEDs lights up on both sides for high beam, replicating original, unshielded, twin filament bulbs. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered, vintage electrical systems (800mA at 12V, ). 3000K warm, white colour temperature.

This bulb is a good LED upgrade alternative to a large number of 12V bulbs from 25/25W to 45/45 including BA5676, BA5677, B5679B and BA5600. Made from aviation grade aluminium.

These bulbs don't have an integral lens so can be used in tripod type lamps. 65mm total bulb height, 12 x 25mm LED section, 15mm DOUBLE contact base with 30mm diameter pre-focus plate

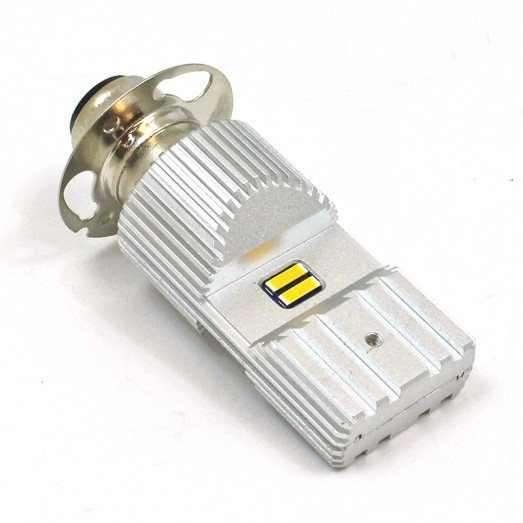

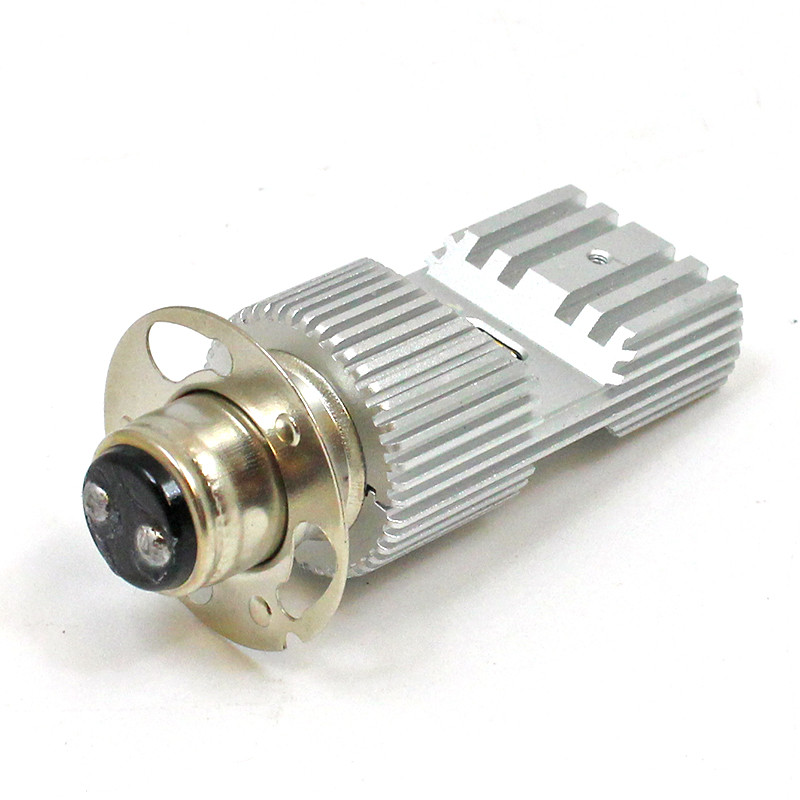

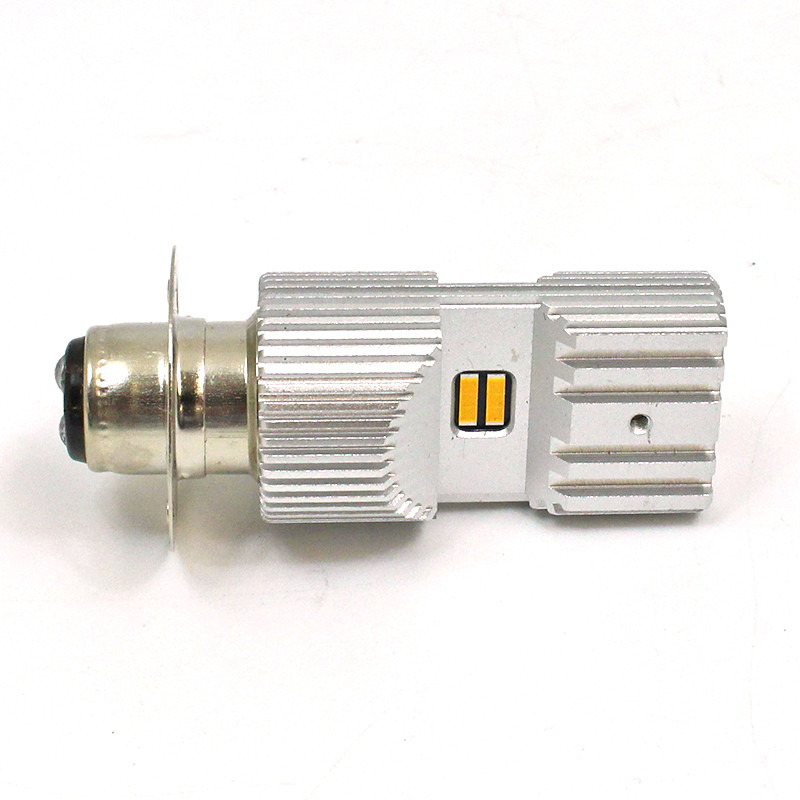

Two designs shown in photos, either design maybe supplied depending on available stock.

Base Volts Watts/Amps Element Colour Application
APF P15D 30 12, 24 LED Warm White Headlamp
@ £22.39/  Each  (exc. VAT)  (inc. VAT @ 20%)
Total: £
