LED Headlamps - White premium 12 & 24V LED Headlamp - SBC BA15D base

White premium 12 & 24V LED Headlamp - SBC BA15D base

High-quality 16 x Cree 2525 (with heatsink) BRIGHT WHITE LED upgrade for SBC BA15D headlamp bulbs from the '20s to the '50s. Flexible application - suitable 12 or 24V vehicles and compatible with either negative or positive earth systems. High and low beam - 1800 Lumen high beam, 1200 Lumen low beam - with a soft beam pattern.

One row of LEDs lights up on each side of the bulb for low beam and both rows of LEDs lights up on both sides for high beam, replicating original, unshielded, twin filament bulbs. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low-powered, vintage electrical systems (800mA at 12V, 1.6A at 6V). 4300K bright, white colour temperature.

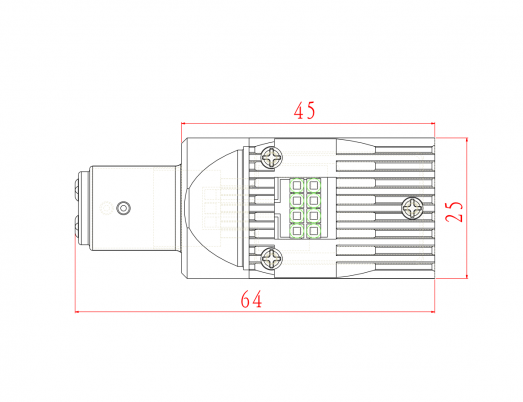

This bulb is a great LED upgrade alternative to a number of higher-wattage 12 and 24V headlamp bulbs including B171B, B1248B and B194. In testing, this LED lamp proved significantly brighter than B1248B 45/35W. Made from aviation-grade aluminium. Please see BA15DLED-H30 for a 3000k, warmer white colour. Total bulb length 65mm, with a 12 x 25mm LED section. 15mm diameter cap.

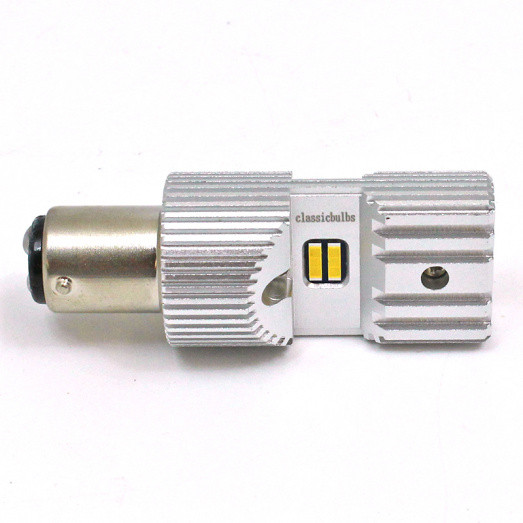

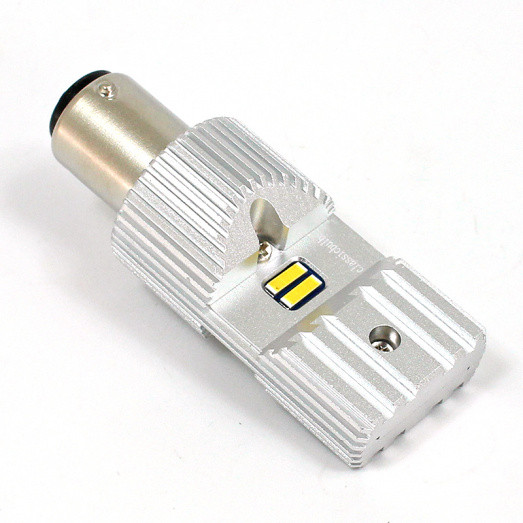

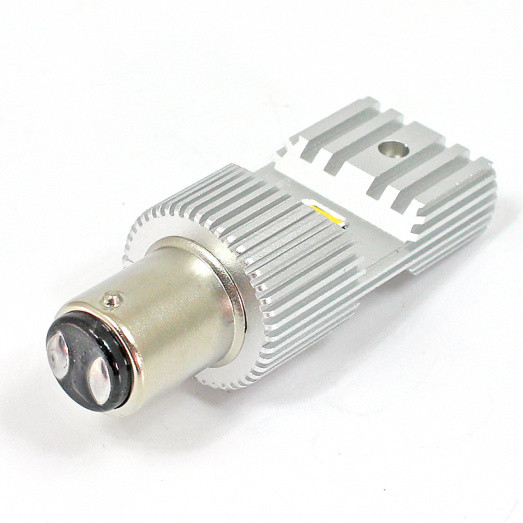

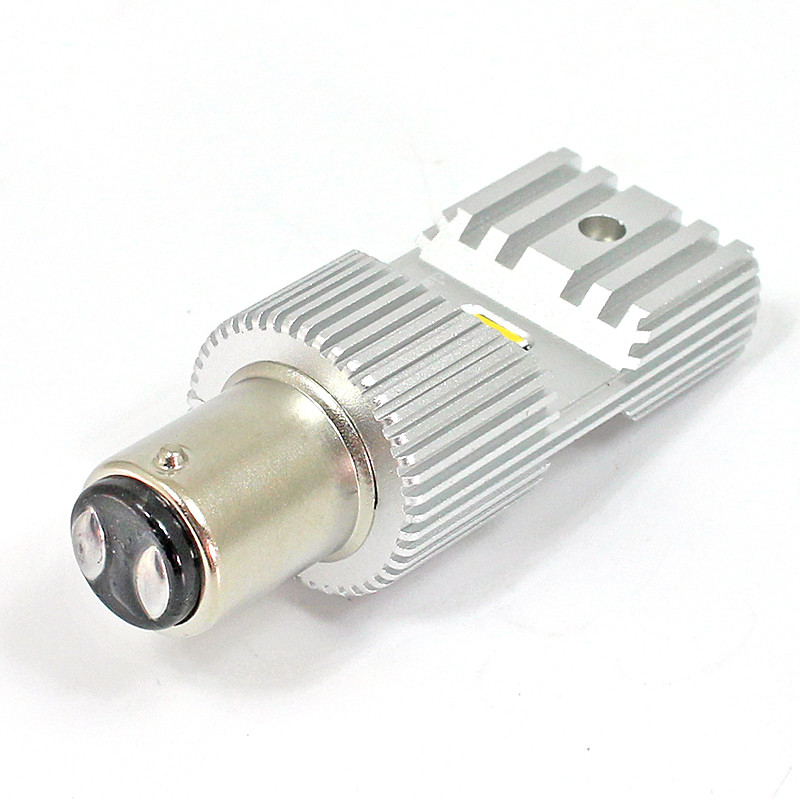

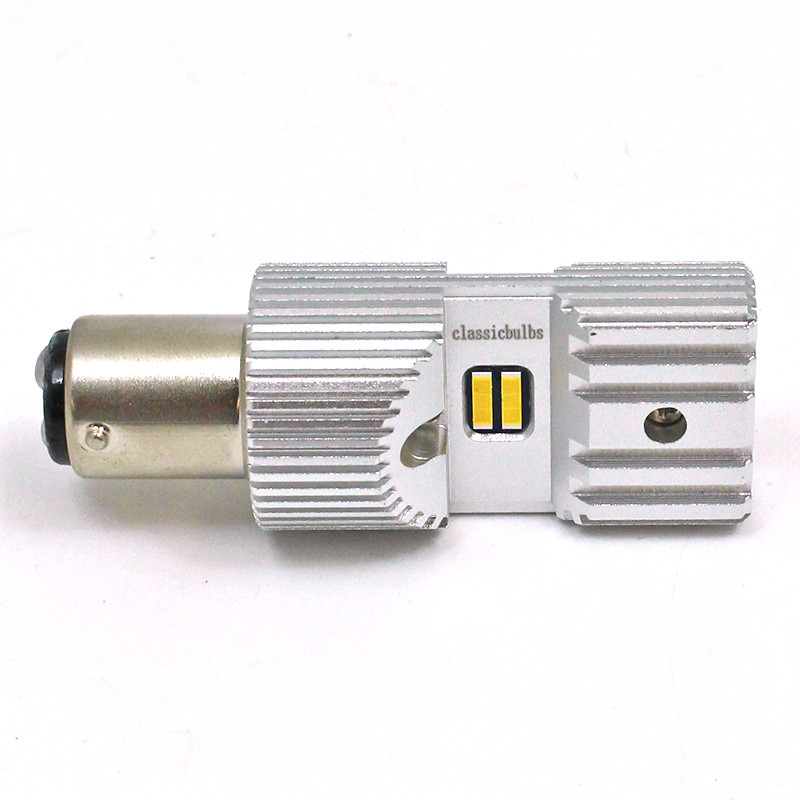

Two designs shown in photos, either design maybe supplied depending on available stock.

Base Volts Watts/Amps Element Colour Application
SBC BA15D 12, 24 LED White Headlamp
