Vintage - Interior rear view mirror - Equivalent to Raydyot M431 type

Interior rear view mirror - Equivalent to Raydyot M431 type

Reproduction interior rear view mirror equivalent to the Raydyot M431 type from the 50's. Attractive angled mounting bracket  Available as bracket only, or fitted with frameless glass - please see mirror glass size options below. The ball joint on the mounting bracket enables the mirror to be placed in any desired position. The same mounting bracket also featured on the Raydyot Bijou Sports Mirror. The ball diameter is 16mm, sized as original, to fit a range of mirror glass clamps should you wish to retain your mirror head.

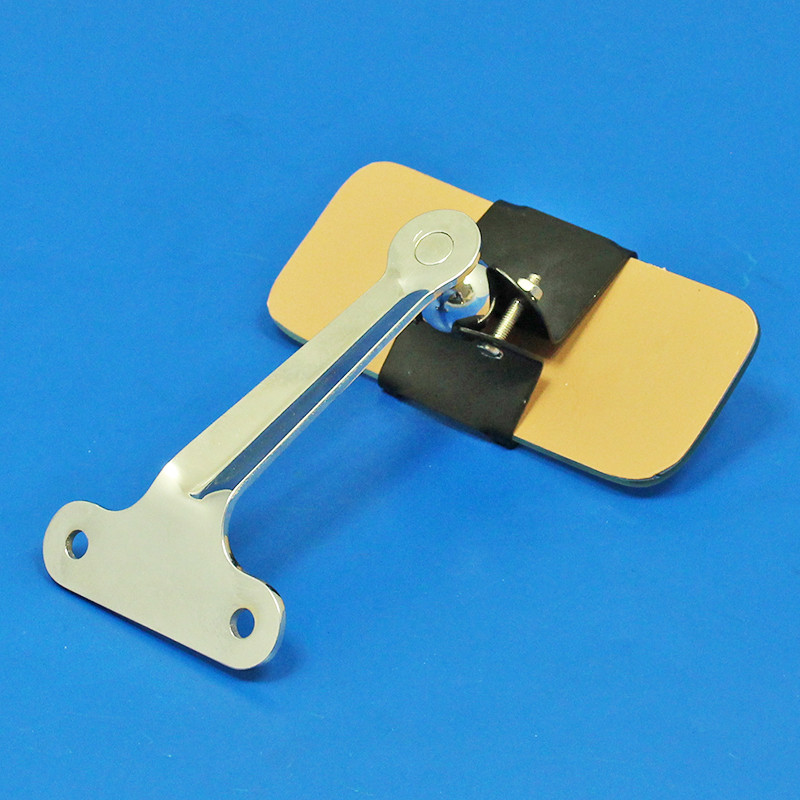

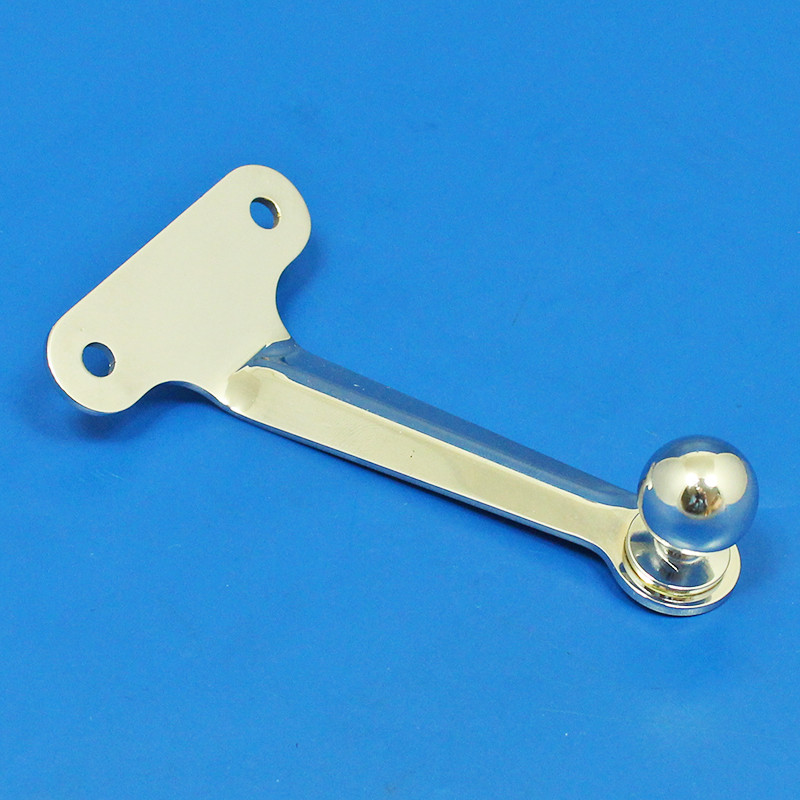

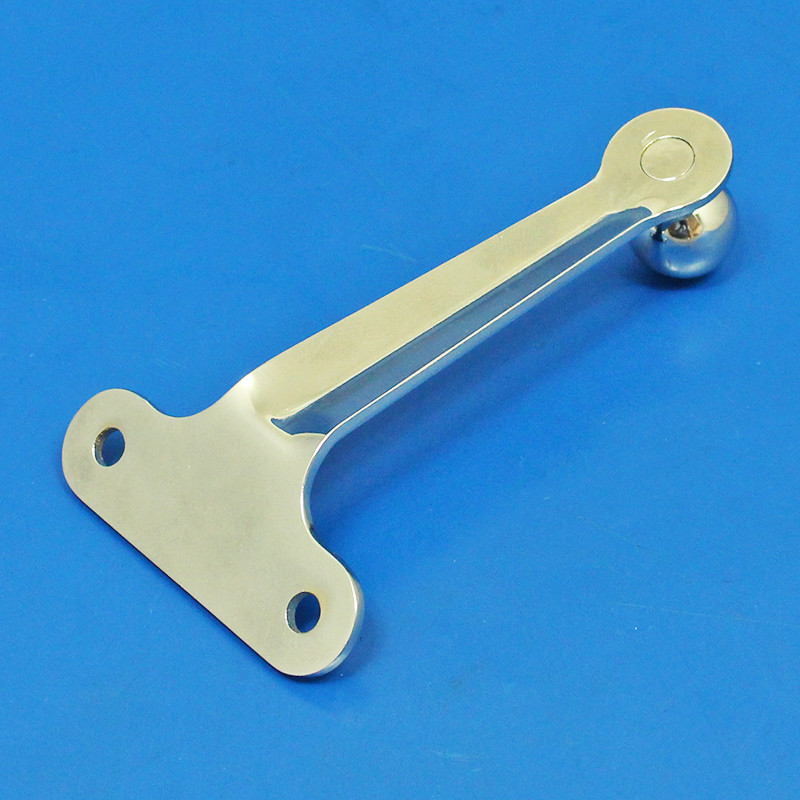

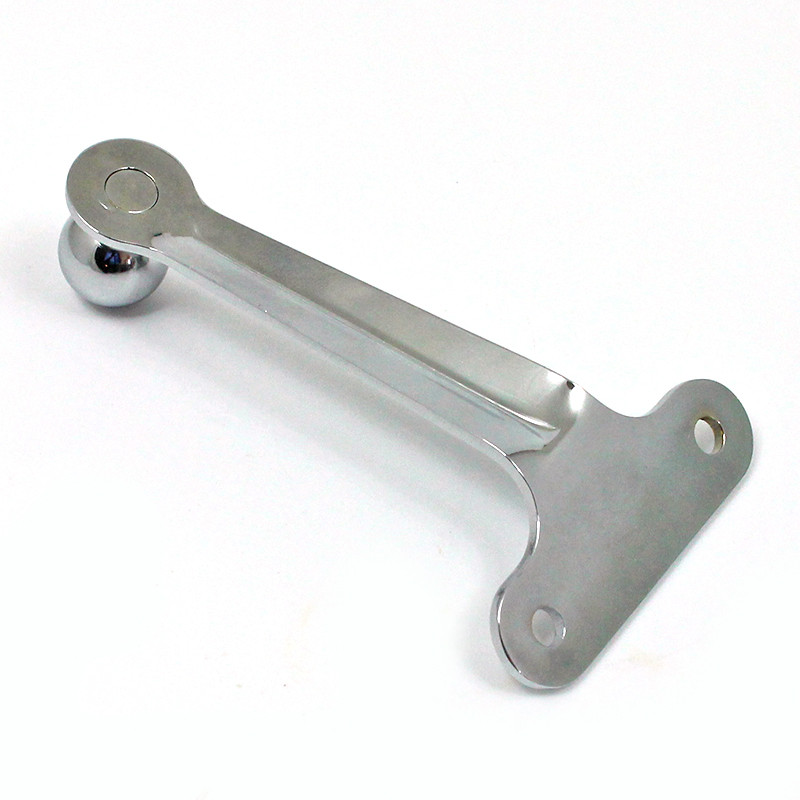

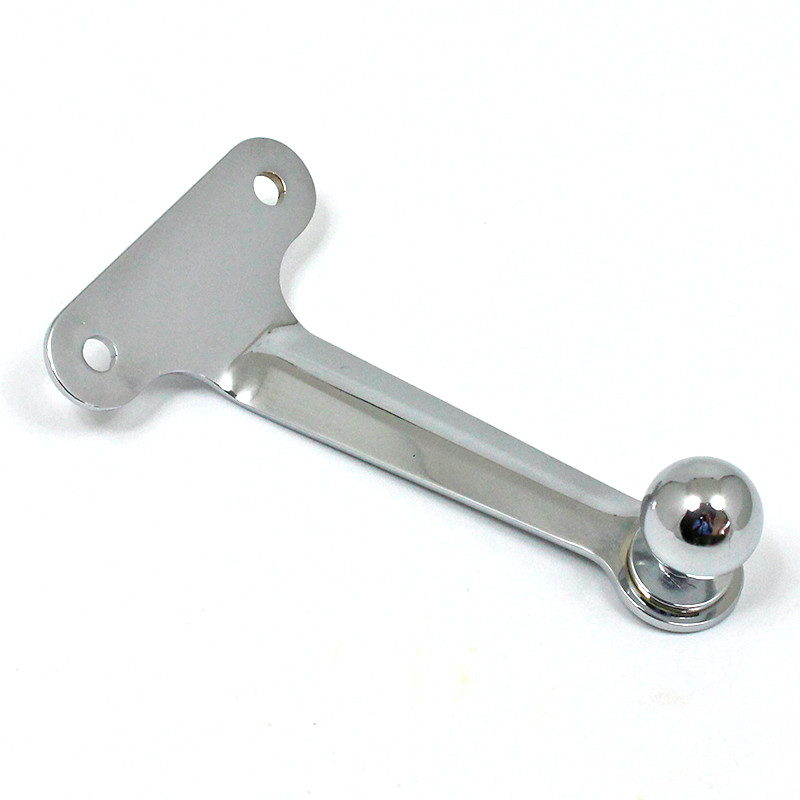

Chrome on brass mounting bracket ,with optional gloss black powder coated stainless steel mirror glass clamp bracket and glass. Mounting bracket base plate size 55mm wide by 22mm high with two 5mm mounting holes, 39mm between centres. End of ball protrudes 66mm from the back of the mounting plate. Centre of ball 66mm below the mounting bracket holes. Width of angled neck 17mm under bracket reducing to 12mm above the ball.

When fitted to the mirror glass clamp, the front of the mirror glass is 80mm from the back of the mounting plate. Offered with a choice of mirror glasses - please indicate preferred option using the drop down boxes below.

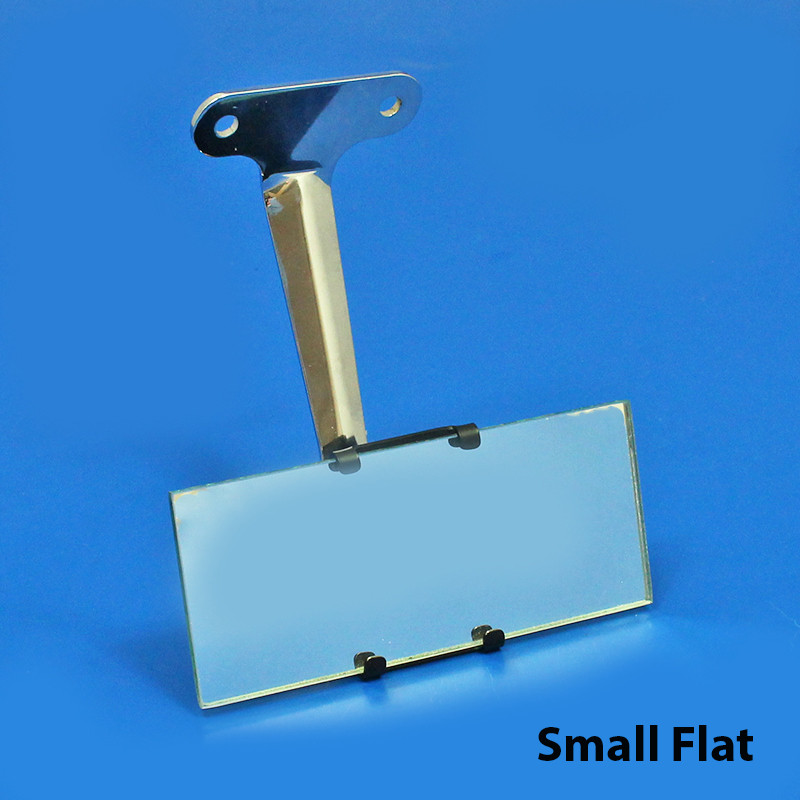

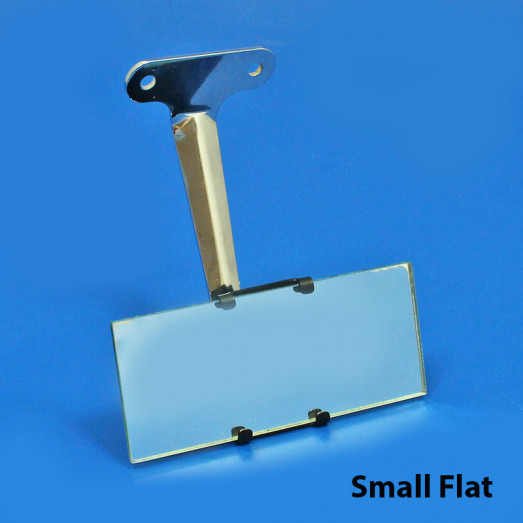

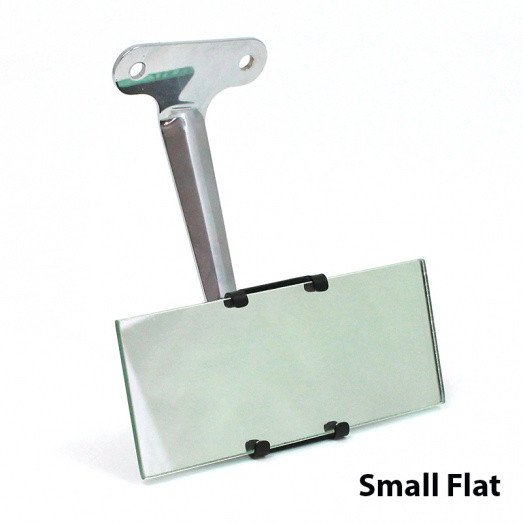

  • Small FLAT mirror glass - 105mm x 45mm (square corners)

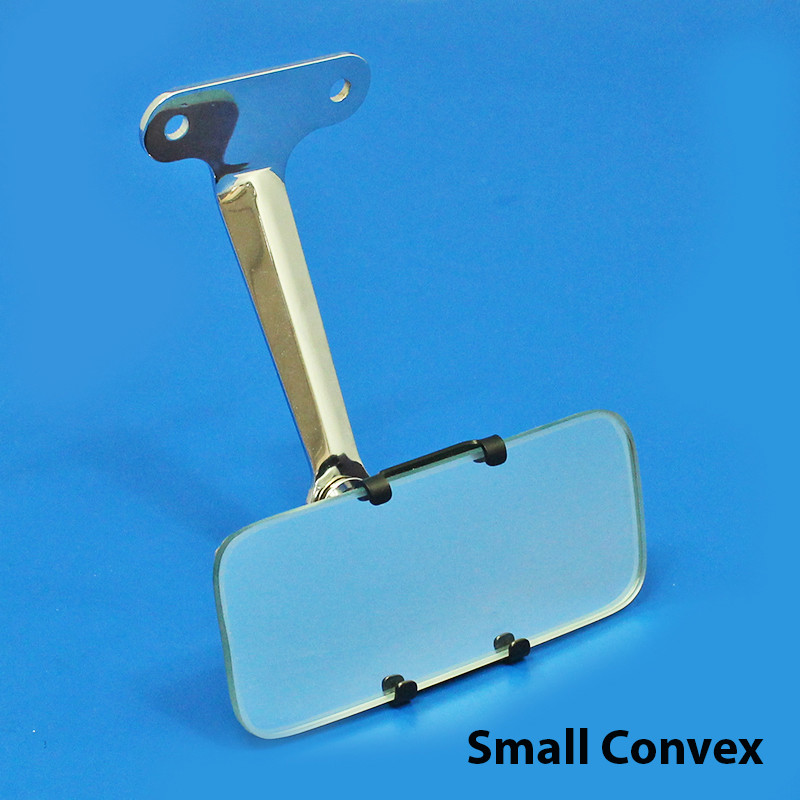

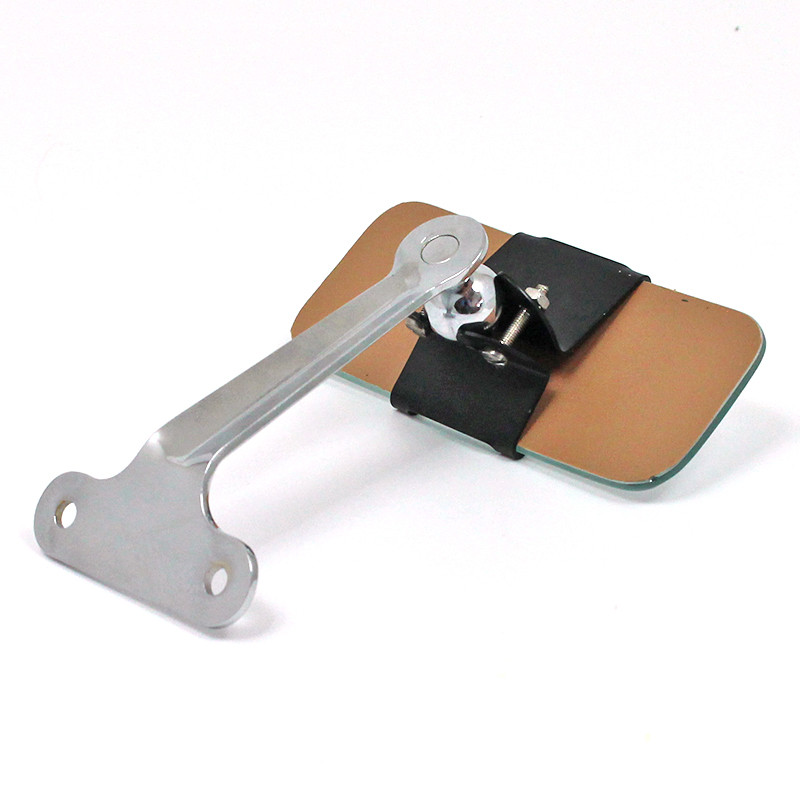

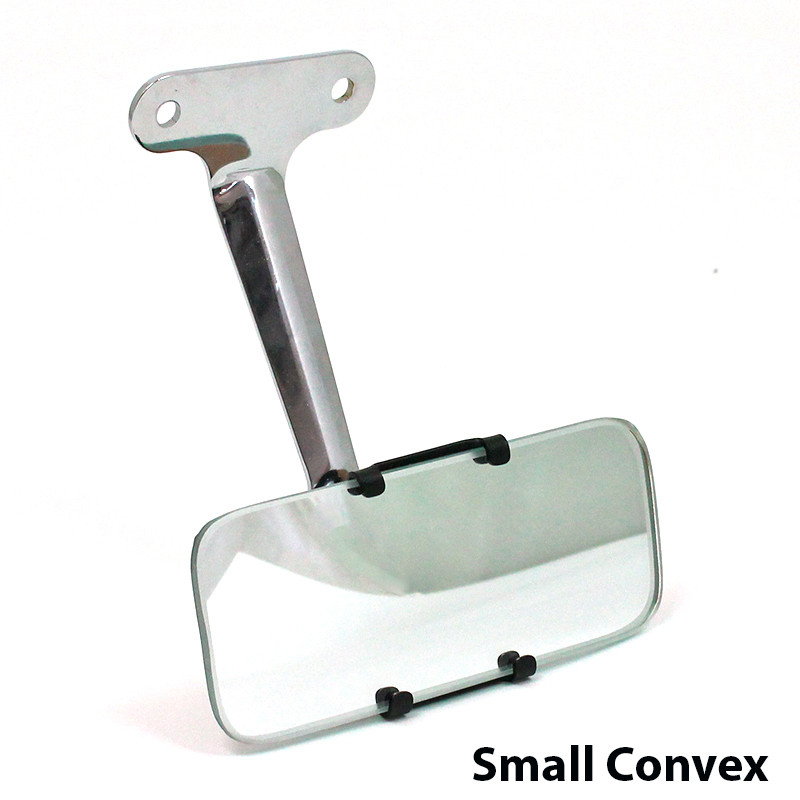

  • Small CONVEX mirror glass - 100mm x 43mm (rounded corners)

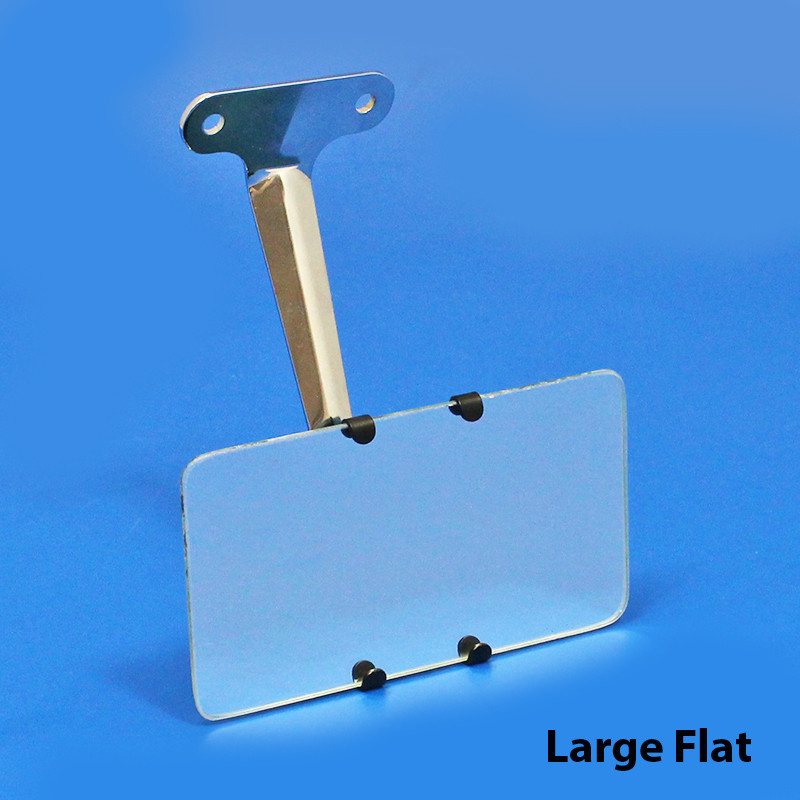

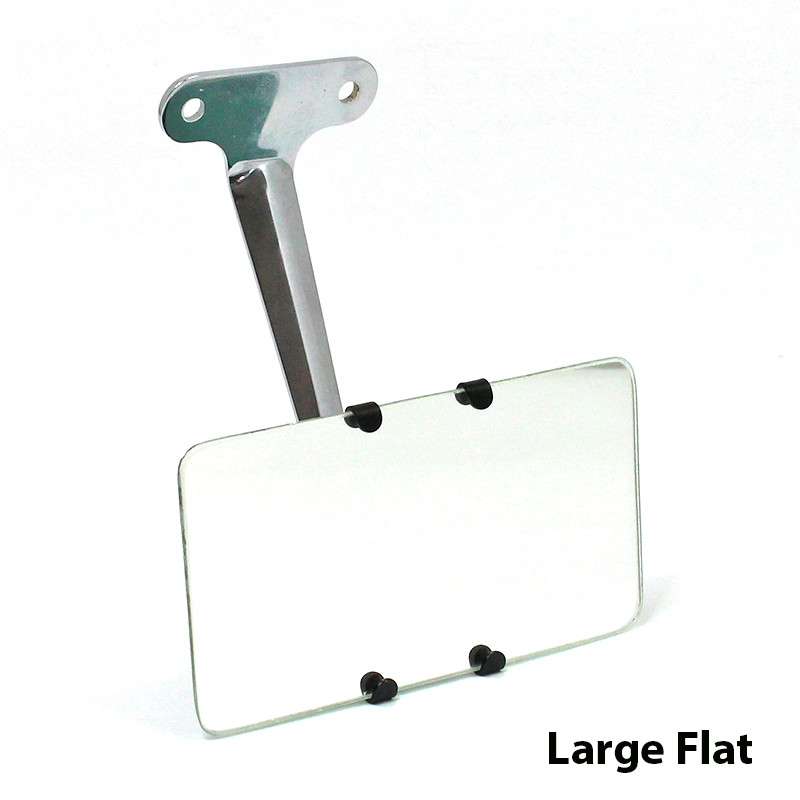

  • Large FLAT mirror glass - 115mm x 60mm (rounded corners)

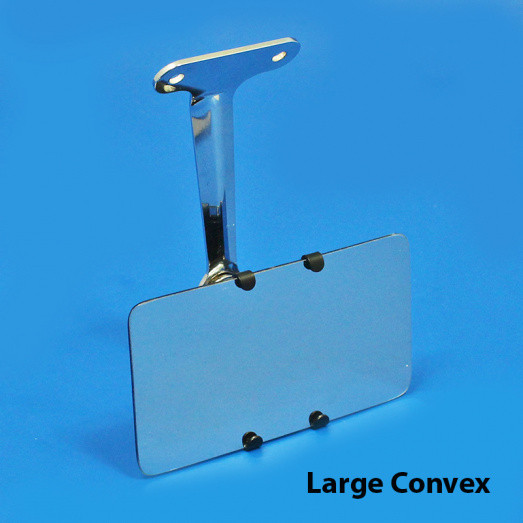

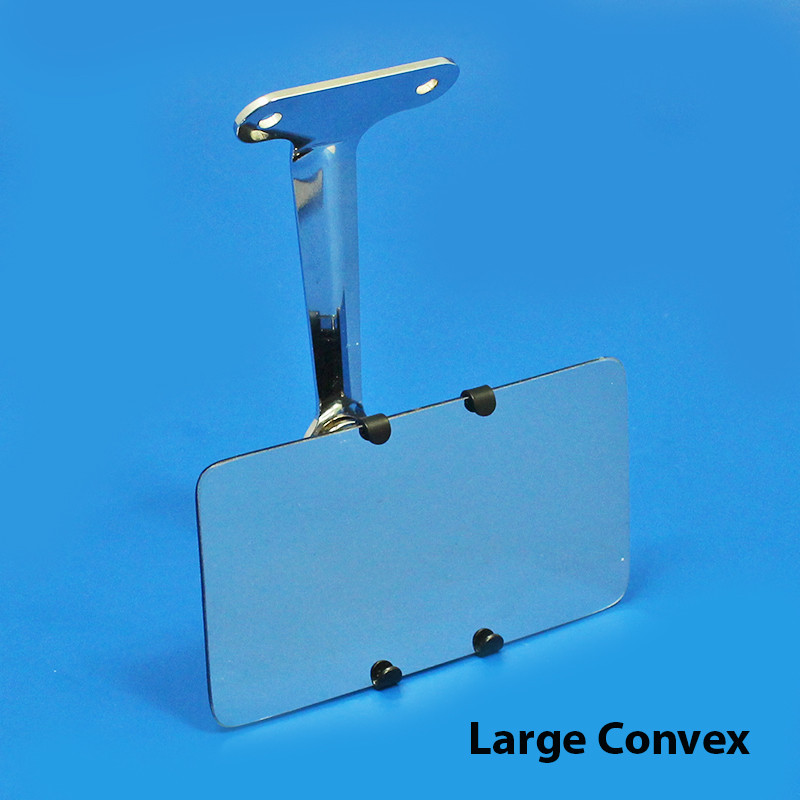

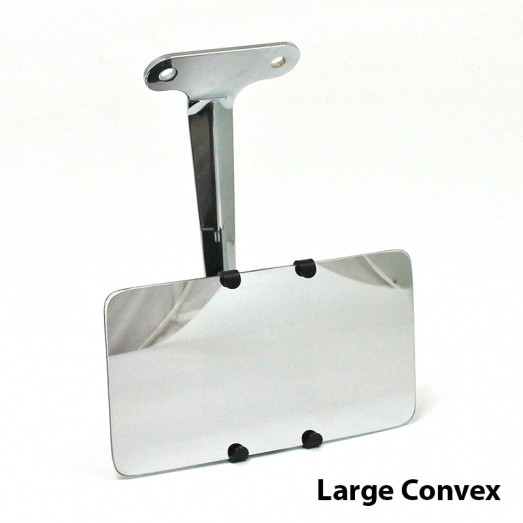

  • Large CONVEX mirror glass - 110mm x 60mm (rounded corners)

Not availabe for sale to the EU due to the requirements of the new GPSR regulations.

@ £30.25/  Each  (exc. VAT)  (inc. VAT @ 20%)
