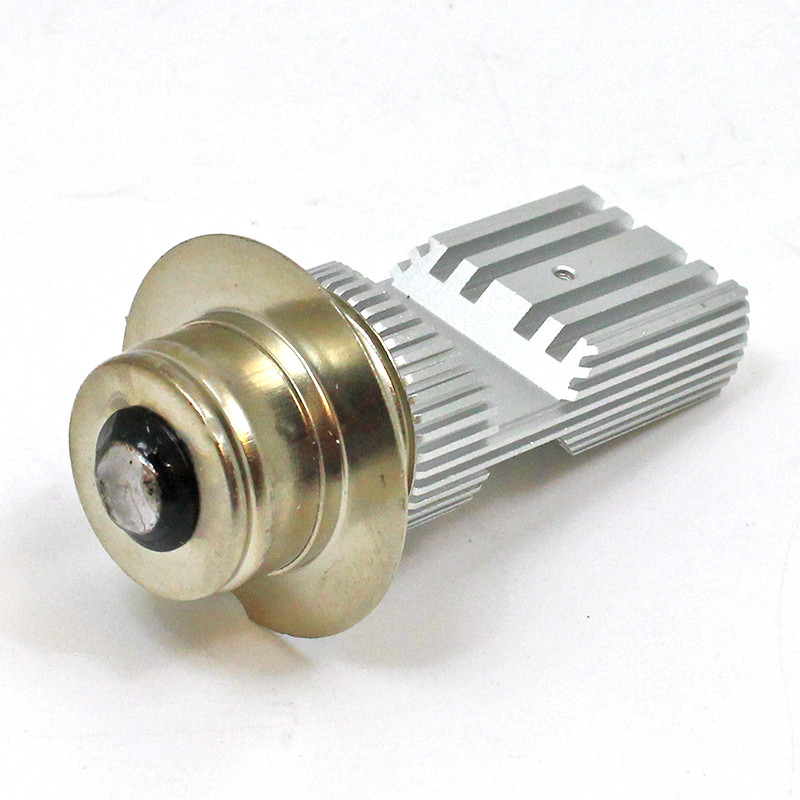

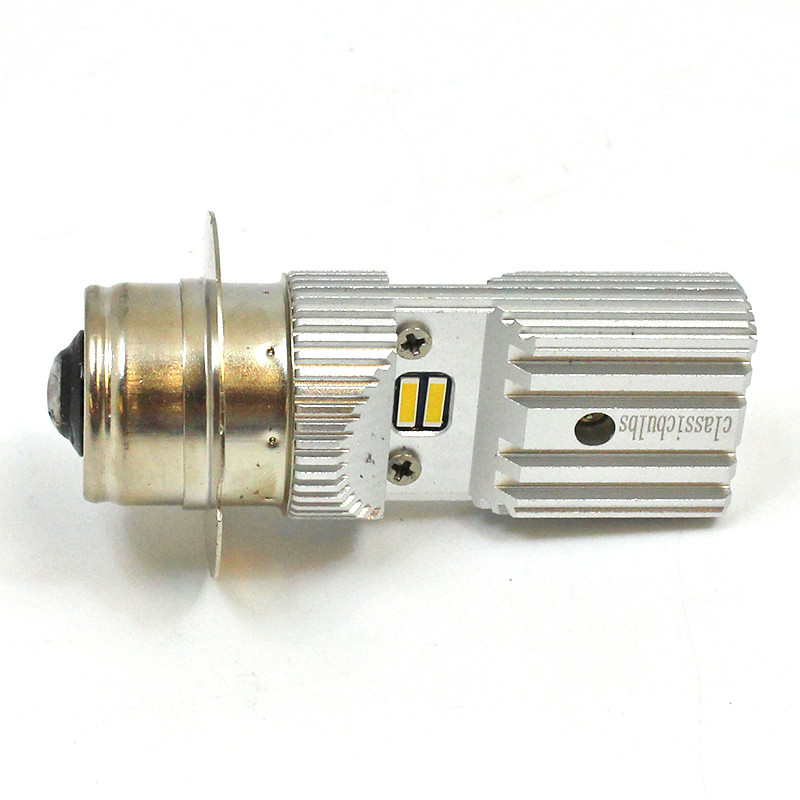

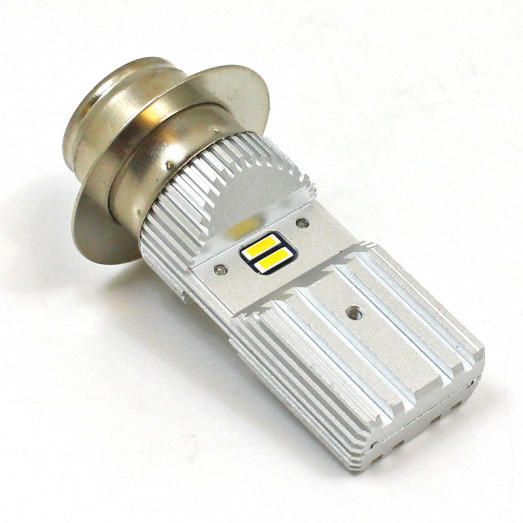

LED Head, Spot & Fog - White premium 6, 12, 24V LED Headlamp - BPF SC P36S base

White premium 6, 12, 24V LED Headlamp - BPF SC P36S base

Bright white, high-quality 16 x Cree 2525 (with heatsink) LED upgrade for British Pre-focus early head and spot lamp applications with the P36S base. Flexible application - suitable for 6, 12 or 24V vehicles and compatible with either negative or positive earth systems. Horizontal LED arrangement equivalent to transverse filament. 1200 Lumen beam with a soft beam pattern.

In testing, brighter than 12v incandescent bulb B323B (36W). Very low current draw - over 75% less than incandescent and halogen bulbs so great for low-powered, vintage electrical systems (800mA at 12V, 1.6A at 6V). 4300K bright, white colour temperature. This bulb is a great LED upgrade alternative to a number of 12 and 24V bulbs including B606 and B323. Made from aviation-grade aluminium.

These bulbs don't have an integral lens so can be used in tripod-type lamps. 60mm total bulb length, LED section 12mm x 25mm, P36S base with 22mm diameter cap and 36mm diameter plate

Base Volts Watts/Amps Element Colour Application
BPF SC P36S 6, 12, 24 LED White Headlamp
@ £22.39/  Each  (exc. VAT)  (inc. VAT @ 20%)
Total: £
