Warm White premium 6, 12 & 24V LED Headlamp - BPF SC P36S base

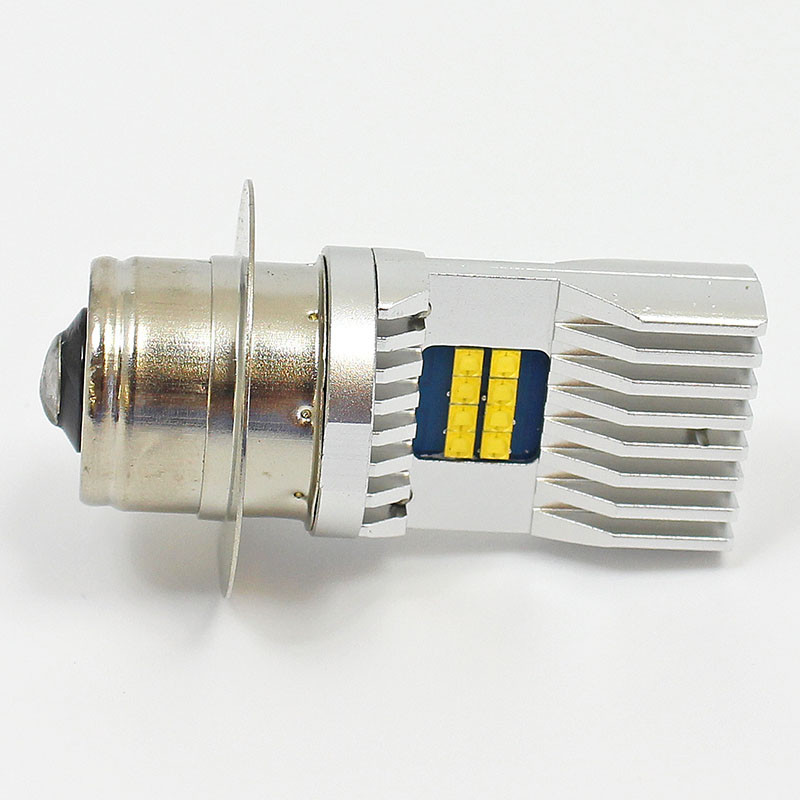

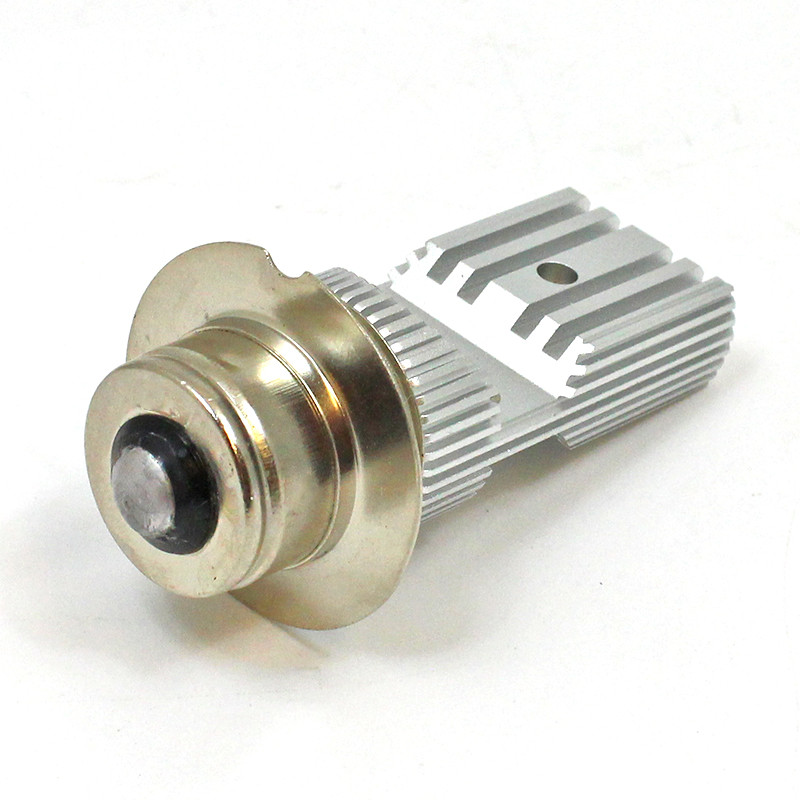

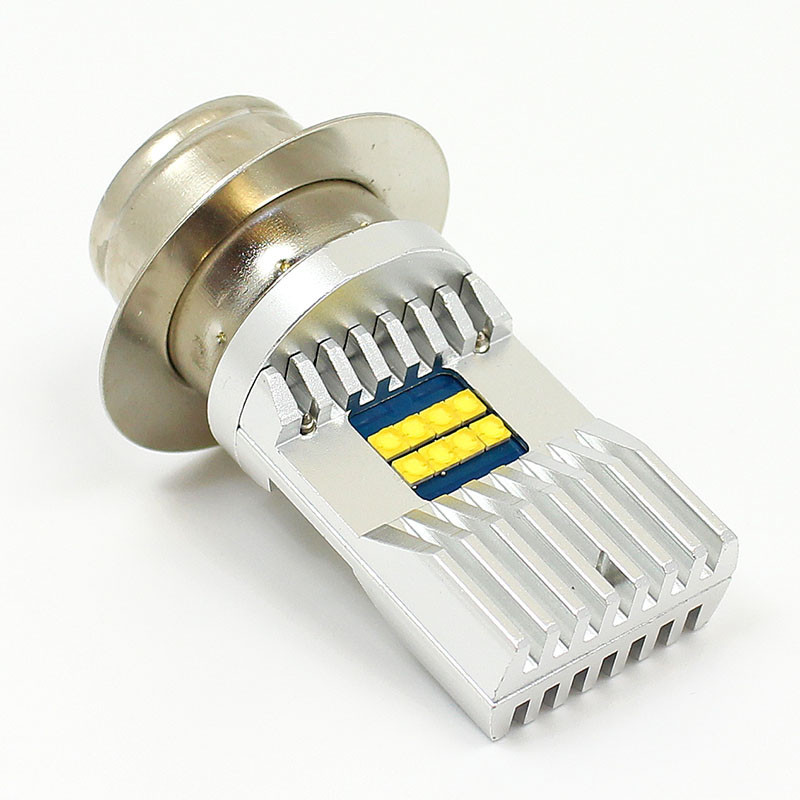

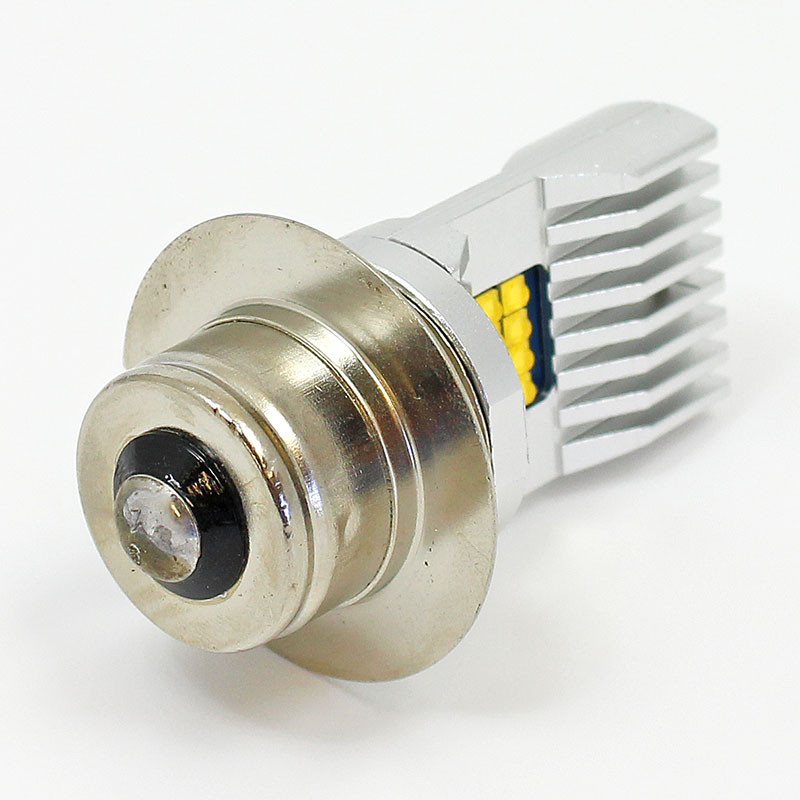

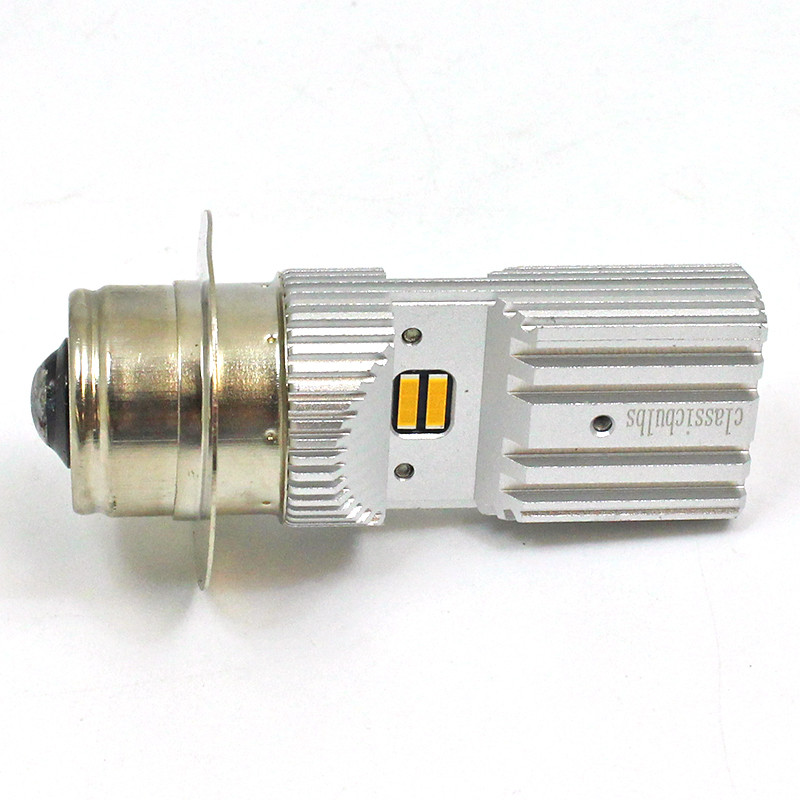

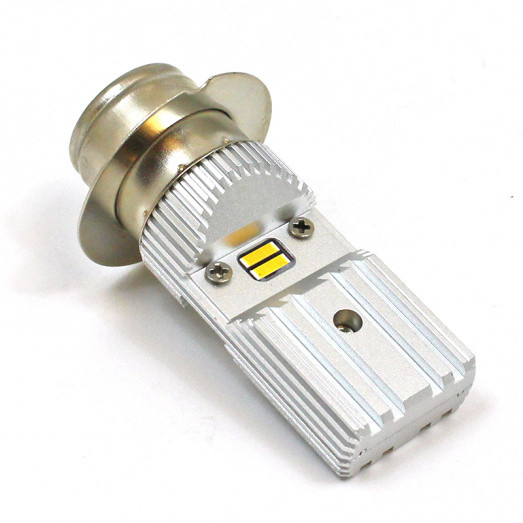

Warm white, high-quality 16 x Cree 2525 (with heatsink) LED upgrade for British Pre-focus early head and spot lamp applications with the P36S base. Flexible application - suitable for 6, 12 or 24V vehicles and compatible with either negative or positive earth systems. Horizontal LED arrangement equivalent to transverse filament. 1200 Lumen beam with a soft beam pattern.
In testing, comparable in brightness to 12v incandescent bulb B323B (36W). Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered, vintage electrical systems (800mA at 12V, 1.6A at 6V). 3000K warm, white colour temperature.

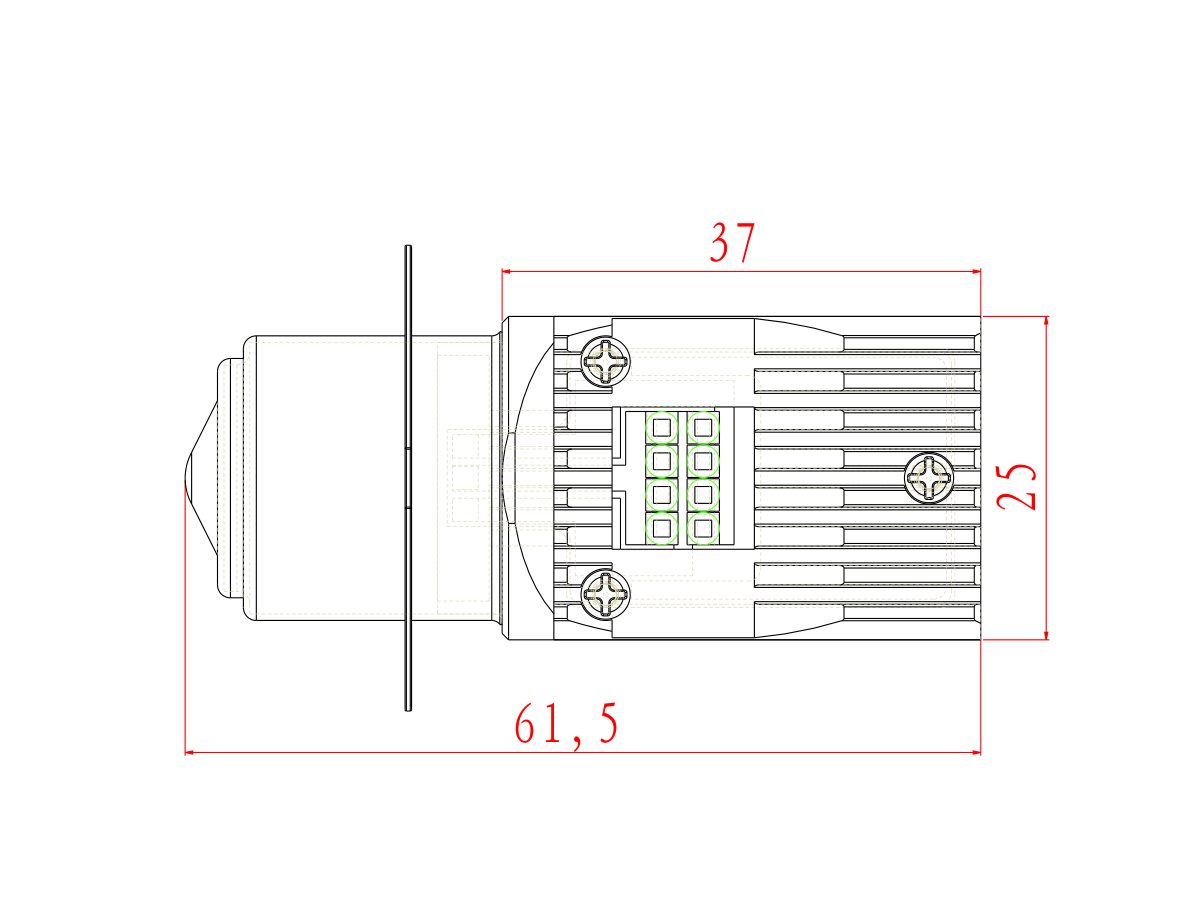

This bulb is a great LED upgrade alternative to a number of 12 and 24V bulbs including B606 and B323. Made from aviation grade aluminium. These bulbs don't have an integral lens so can be used in tripod type lamps. 61mm total bulb length with 12 x 25mm LED section. 22mm diameter cap with 36mm plate.
|Base ||Volts ||Watts/Amps ||Element ||Colour ||Application |
|BPF SC P36S ||6, 12, 24 || ||LED ||Warm White ||Headlamp |
