Fuel Filtration - Glass bowl fuel filter - In line, 1/2" UNF female or solder nipples for 1/4" or 5/16" OD pipe

Glass bowl fuel filter - In line, 1/2" UNF female or solder nipples for 1/4" or 5/16" OD pipe

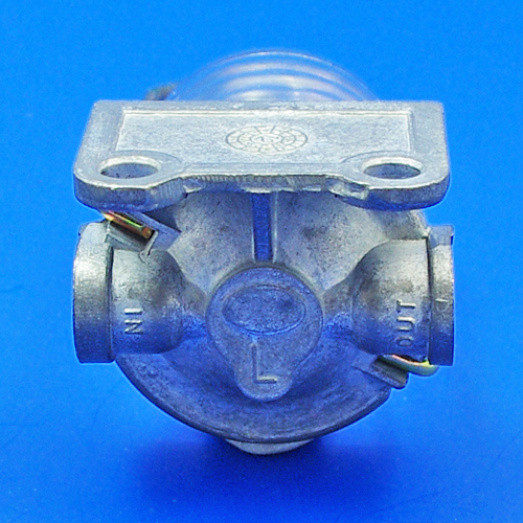

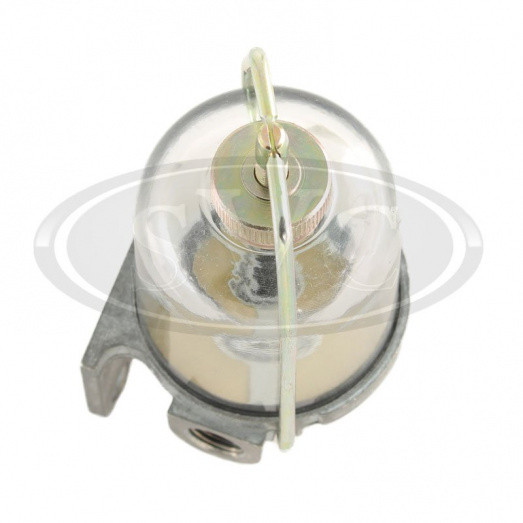

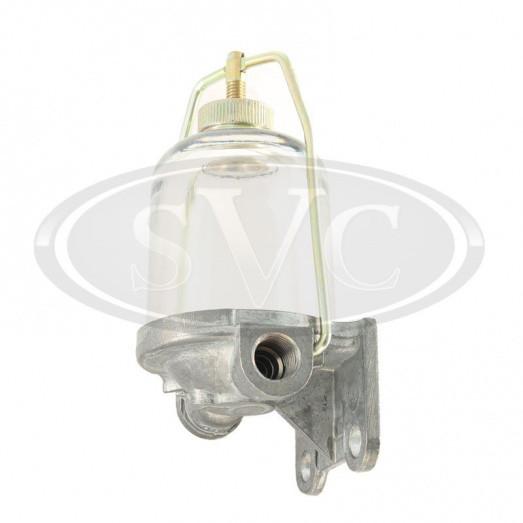

Glass bowl in line fuel filter, with mounting bracket (hole centres approx 40mm centres). Detatchable glass bowl held by U bracket.

This filter is offered with right or left inlet port (as viewed with the mounting bracket away at back). Fitting options:

  • CA1026A & B -  1/2" UNF threaded ports (overall dimensions height 120mm, width 75mm, depth 58mm). No fittings supplied - double ended union with nuts and nipples, or male union nuts 1/4" or 5/16" can be supplied at extra cost.
  • CA1026A-BSP and CA1026B-BSP - Ports tapped out to 1/4" BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe - please selection option from dropdown box under the individual parts.

CA1026A - Right inlet - 1/2" UNF female ports
@ £34.83/  each  (exc. VAT)  (inc. VAT @ 20%)
Subtotal:
CA1026B - Left inlet - 1/2" UNF female ports
@ £34.83/  each  (exc. VAT)  (inc. VAT @ 20%)
Subtotal:
CA1026A-BSP - Right inlet - Solder nipples for 1/4" or 5/16" pipe

Tapped out to 1/4BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe

@ £59.86/  each  (exc. VAT)  (inc. VAT @ 20%)
Subtotal:
CA1026B-BSP - Left inlet - Solder nipples for 1/4" or 5/16" pipe

Tapped out to 1/4BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe

@ £59.86/  each  (exc. VAT)  (inc. VAT @ 20%)
Subtotal:
