688B - Door hinge ball - Conical

From £0.00 (exc. VAT)

Replacement 18mm diameter brass conical ball for self aligning hinge, tapers down to 8.5mm at the top, 17.5mm tall with a 7.2mm hole.

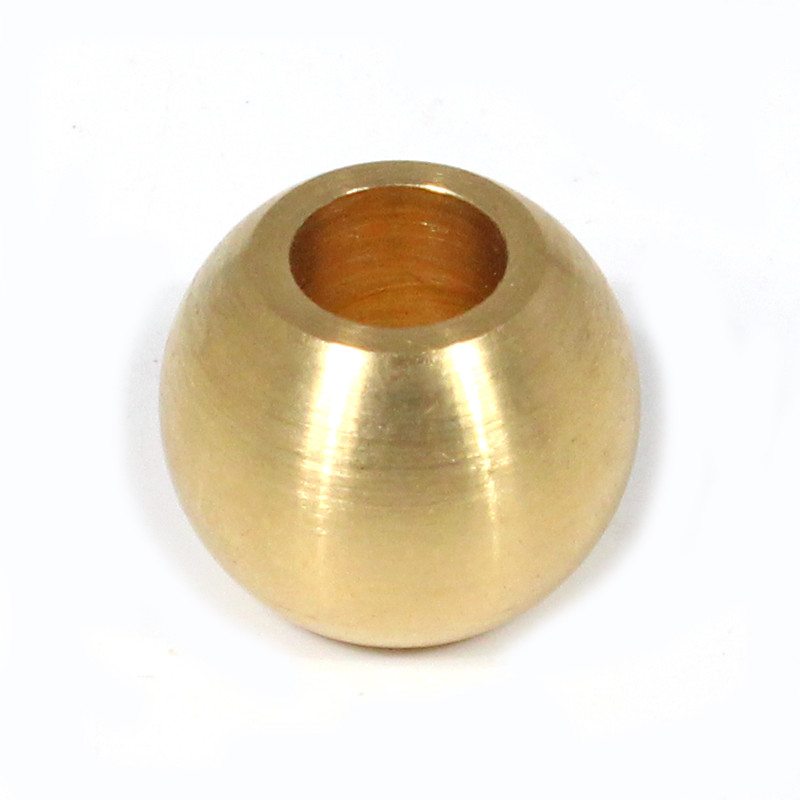

Replacement spherical brass hinge pin ball, 5/8" (16mm) diameter

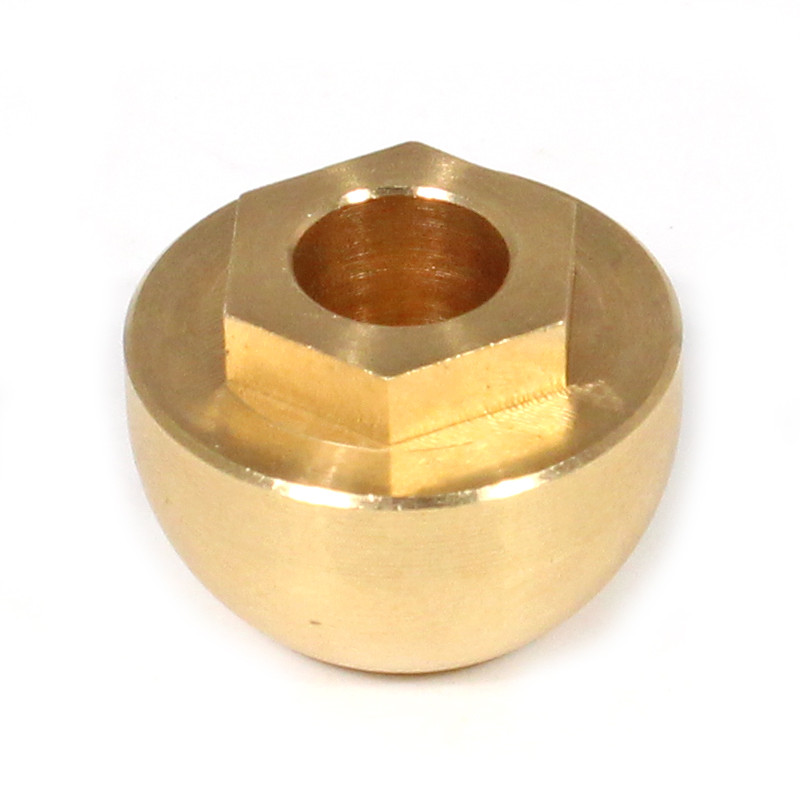

688C - Door hinge ball - Hexagon base

From £0.00 (exc. VAT)

Replacement brass half ball (19mm diameter) with hexagon base (11.6mm across flats) for steel self aligning hinges.

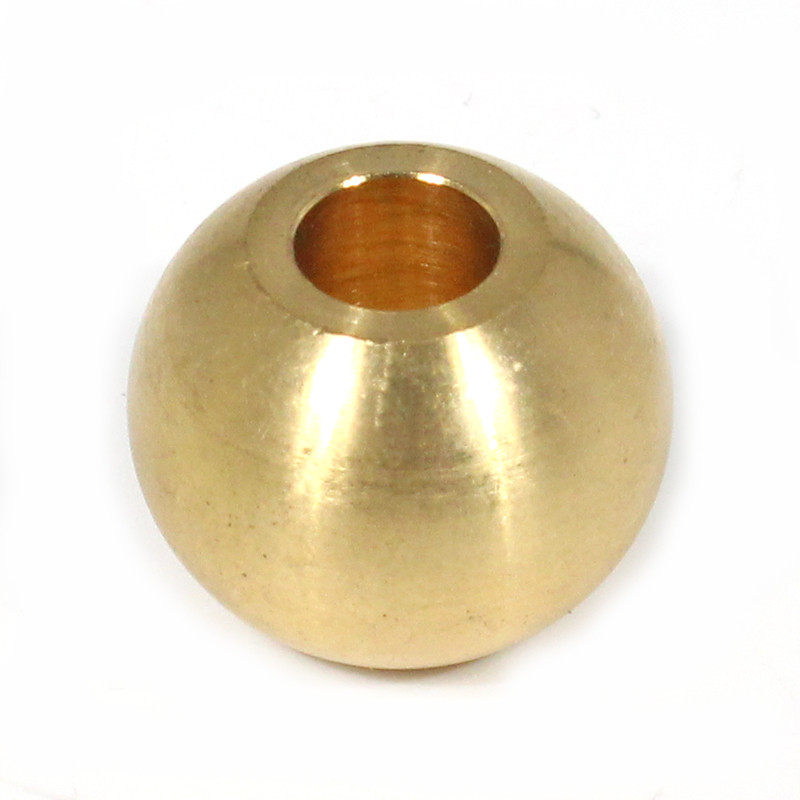

Replacement spherical brass hinge pin ball, 3/4" (19mm) diameter with 7mm hole in the centre

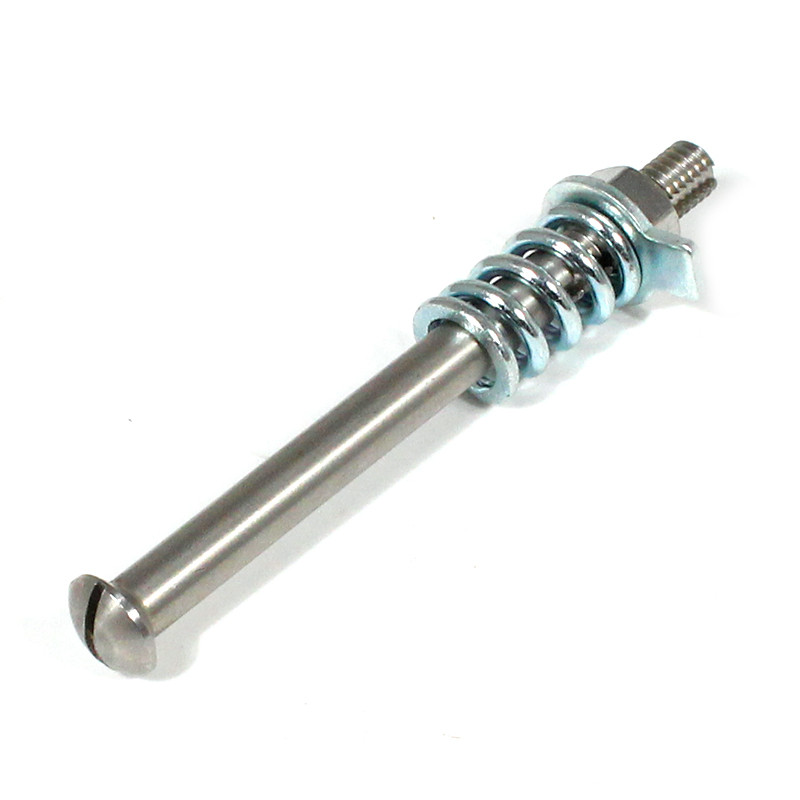

Replacement hinge pin, spring, tag washer and nut for 64mm tall steel self aligning hinge. Please order brass ball separately. Dimensions, overall length 77mm (73mm under countersink), 6mm diameter threaded section 19mm long with machined grove to locate lock washer.

Replacement hinge pin, spring, tag washer and nut for 51mm tall steel self aligning hinge, order brass ball separately. Dimensions, overall length 65mm (61mm under countersink), 6mm diameter threaded section 20mm long with machined grove to locate lock washer.

Replacement hinge pin, spring, tag washer and nut for 38mm tall steel self aligning hinge. Order brass ball separately. Dimensions overall length 47mm (43mm under countersink), 6mm diameter threaded section 20mm long with machined grove to locate lock washer.
