499 - Standard PVC Cable - 8 Amp Quad

From £0.00 (exc. VAT)

4 core, 8amp classic low voltage auto PVC covered cable available in cut lengths. The price is per metre. Metric specification 14/0.30 (Imperial 14.012) for side, tail lamps, indicators, fog lamps and general wiring. QUAD CORE Multistrand - 8 amp capacity. (Total cable conductor area approx. 4 x 1.0mm^2) Outer diameter 8.0mm. Brown, green, red, and white cores.

Classic low voltage auto PVC covered cable available in cut lengths. Price is per metre. Metric specification 28/0.30 (Imperial 28.012) for head lamps, wipers, screen heaters and petrol pumps. TRIPLE CORE - 16 amp capacity. (Total cable conductor area approx. 2.0 mm^2) Outer diameter - 8.5mm. Black green red cores.

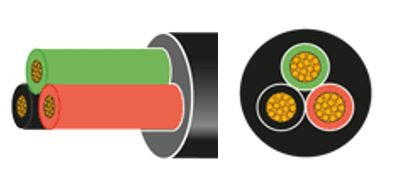

3 core, 8amp  classic low voltage auto PVC covered cable available in cut lengths. Price is per metre. Metric specification 14/0.30 (Imperial 14.012) for side, tail lamps, indicators, fog lamps and general wiring. TRIPLE CORE, Multistrand - 8 amp capacity. (Total cable conductor area approx. 3 x 1.0mm^2) Outer diameter 7.5mm. Black green red cores.

Classic low voltage auto PVC covered cable available in cut lengths. Price is per metre. Metric specification 44/0.30 (Imperial 44.012) for charging circuits and main feeds. TWIN CORE - 27 amp capacity. (Total cable conductor area approx. 3.1 mm^2) Outer dimensions 8.5mm x 5.0 mm

Classic low voltage auto PVC covered cable available in cut lengths. Price is per metre. BLACK ONLY. Metric specification 65/0.30 (Imperial 65.012) for heavy duty charging circuits and alternator feeds. SINGLE CORE - 35 amp capacity. (Total cable conductor area approx. 4.6 mm^2). Outer diameter- 5.1mm Max loading at 12V - 420 Watts Max resistance per M at 20 degC - 0.0041 Ohms

Classic low voltage auto PVC covered cable available in cut lengths. Price is per meter. Metric specification 28/0.30 (Imperial 28.012) for head lamps, wipers, screen heaters and petrol pumps. TWIN CORE - 16 amp capacity. (Total cable conductor area approx. 2x 2.0 mm^2). Outer dimension 7.6mm x 4.4mm

497 - Standard PVC Cable - 8 Amp Twin

From £0.00 (exc. VAT)

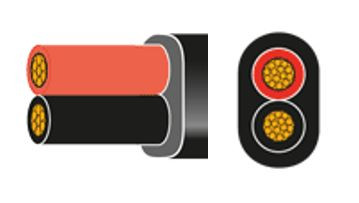

8 Amp twin classic low voltage auto PVC covered cable available in cut lengths. The price is per metre. Metric specification 14/0.30 (Imperial 14.012) for side, tail lamps, indicators, fog lamps and general wiring. TWIN CORE, multistrand - 8 amp capacity. (Total cable conductor area approx. 2x 1.0mm^2). Outer dimension 6.5mm x 3.9mm.

Classic low voltage auto PVC covered cable available in cut lengths. Price is per metre. Metric specification 9/0.30 (Imperial 9.012) for side, tail lamps, indicators etc TWIN CORE - 5.75amp capacity. (Total cable conductor area approx. 2x 0.65 mm^2) Outer dimensions - 6mm x 3.6mm

Classic low voltage auto PVC covered cable available in cut lengths. Price is per metre. BLACK ONLY. Metric specification 44/0.30 (Imperial 44.012) for charging circuits and main feeds. SINGLE CORE - 27 amp capacity. (Total cable conductor area approx. 3.1 mm^2) Outer diameter - 4.2mm Max load at 12V - 330 Watts Max resistance per M at 20 degC - 0.006 Ohms

Classic low voltage auto black PVC covered cable available in cut lengths. Price is per metre. Metric specification 28/0.30 (Imperial 28.012) for head lamps, wipers, screen heaters and petrol pumps. SINGLE CORE - 16 amp capacity. (Total cable conductor area approx. 2.0 mm^2) Outer diameter - 3.4mm Max load at 12V - 210 Watts Max resistance per M at 20 degC - 0.0094 Ohms

Classic low voltage 8amp auto PVC covered cable available in cut lengths. The price is per metre. Metric specification 14/0.30 (Imperial 14.012) for side, tail lamps, indicators, fog lamps and general wiring. SINGLE Multistrand core - 8 amp capacity. (Total cable conductor area approx. 1.0mm^2) Outer diameter - 2.7mm Max load at 12V - 105 Watts Max resistance per M at 20 degC - 0.0189 Ohms

Classic low voltage auto PVC covered cable available in cut lengths. Price is per metre. Black, Red or Blue/White. Metric specification 9/0.30 (Imperial 9.012) for light duty side, tail lamp, indicator etc wiring. SINGLE CORE - 5.75amp capacity. (Total cable conductor area approx. 0.65 mm^2) Outer diameter - 2.5mm Max load at 12V - 69 Watts Max resistance per M at 20 degC - 0.0294 Ohms

Thin wall low voltage (Max 50V) 28/0.30 cable for 12 and 24V automotive use. PVC insulated copper. Lower weight and volume than standard cable. Good resistance to abrasion, petrol, diesel and oils. Outer diameter - 2.55mm Conductor cross section - 2mm^2 Max load at 12V - 300 Watts. Max resistance per M at 20 degC - 0.00942 Ohms. Temperature range -40 to +105 degrees C. (ISO6722 Part4 1993 Class B)

Thin wall low voltage 24/0.20 cable for 12 and 24V automotive use. PVC insulated copper. Lower weight and volume than standard cable. Good resistance to abrasion, petrol, diesel and oils. Outer diameter - 1.75mm Conductor cross section - 0.75mm^2 Max load at 12V - 168 Watts Max resistance per M at 20 degC - 0.0247 Ohms

1009 - Thin Wall Cable - 14 Amp Quad

From £0.00 (exc. VAT)

Thin wall low voltage 4 x 24/0.20 BLACK (brown, green, red white) cable for 12 and 24V automotive use. PVC insulated copper. Lower weight and volume than standard cable. Good resistance to abrasion, petrol, diesel and oils. 5.9mm outer diameter

Thin wall low voltage 3 x 24/0.20 BLACK (red, green, black) cable for 12 and 24V automotive use. PVC insulated copper. Lower weight and volume than standard cable. Good resistance to abrasion, petrol, diesel and oils. 5.7mm outer diameter

Thin wall low voltage 2 x 24/0.20 BLACK (red, black) cable for 12 and 24V automotive use. PVC insulated copper. Lower weight and volume than standard cable. Good resistance to abrasion, petrol, diesel and oils. 5.3mm outer diameter

Thin wall low voltage 2 x 28/0.30 BLACK (red, black) cable for 12 and 24V automotive use. PVC insulated copper. Lower weight and volume than standard cable. Good resistance to abrasion, petrol, diesel and oils. 6.8mm outer diameter outer
