12 volt electrical relay equivalent to Lucas part number DB10 (alternative part number 33117). Used where brake and indicator rear lights are used on the one bulb (to enable brake lights to also be usd as rear indicators). Applications include MG, Morris Minor etc. Positive or negative earth. Needs to be wired in conjunction with a suitable flasher unit.

Replacement spare black cover with top screw for Lucas SF4 type fuse boxes. Marked with 'MODEL SF4 TYPE' in raised lettering as original

Lucas 7FJ for four Glass Type Fuses for later MGB, TRs, Cobra & many other cars. Lucar 6.4mm connectors

Single fuse box, black bakelite cover, takes glass type fuses 54mm x 32mm, height 45mm excluding clip. As Lucas type fuse box SF5/2, 37260

FH210C - Fuse holder cover for FH210

From £0.00 (exc. VAT)

Transparent push on cover for FH210

Continental type cartridge fuses - suitable for fuse boxes including our part numbers CA1394, 658, 659 and CA1433. Fuse length 25mm. Available in 5 (yellow), 8 (white), 16 ( red) and 25 (blue) amp rating - please select when ordering.

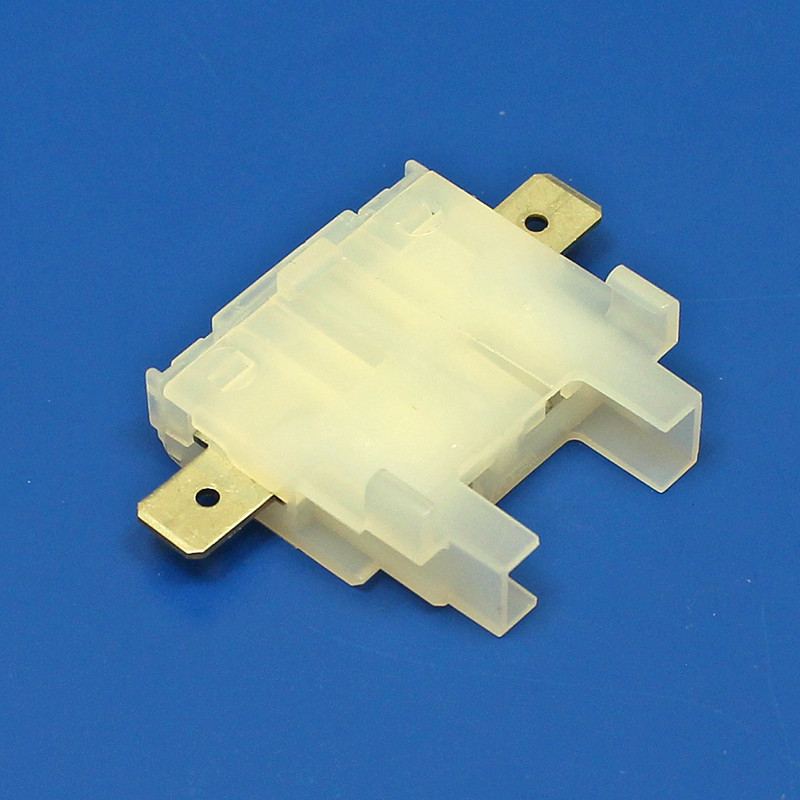

White individual fuse holder. Accepts standard blade fuses. Several fuse holders can be clipped together to form a fuse block. Cable connections are made by 2 x 6.3mm blade terminals.

Individual fuse holder. Accepts standard blade fuses. Cable connections are made by 2 x 6.3mm blade terminals.

Fixing pate and screw for securing part numbers FH210 of FH220 to a firm surface

Black individual fuse holder. Accepts standard blade fuses. Several fuse holders can be clipped together to form a fuse block. Cable connections are made by 2 x 6.3mm blade terminals which are pre-fitted into the base of the fuse holder.

CONTIHOLDER - Continental fuse holder

From £0.00 (exc. VAT)

Continental Fuse Holder suits part number CONTIFUSE. Complete with 8amp fuse. Cable attaches in a similar manner to a block connector, with a brass insert and small grub screw. Approximately 45mm x 13mm dia

Glass fuse holder for part number GLASSFUSE. Rated to 17 Amps, Cable conductor Cross Section 2.0mm^2. Fitted with 6.3mm male and female spade connections

Glass fuse holder for part number GLASSFUSE. Rated to 17 Amps, Cable conductor Cross Section 2.0mm^2

Glass fuse holder for part number GLASSFUSE. Rated to 5 Amps, Cable conductor Cross Section 1.0mm^2. Fitted with 6.3mm male and female spade connections

Glass fuse holder for part number GLASSFUSE. Rated to 5 Amps, Cable conductor Cross Section 1.0mm^2

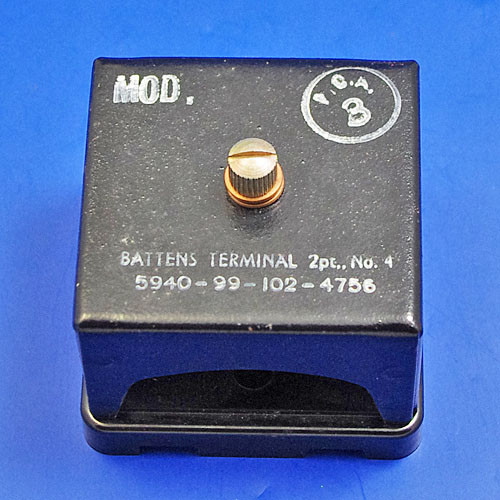

FB1 - Heavy fuse wire box

From £0.00 (exc. VAT)

Heavy black metal cover held with a screw knob, bakelite base fuse box. Two terminals to wind round the fuse wire selected. Base 72mm x 72mm, x depth 50mm (does not include the screw knob height). Particularly suitable as a main fuse.

FBB8T - 8 Fuse Blade Fuse Box

From £0.00 (exc. VAT)

8-Way Fuse Box. Standard Blade fuse box complete with transparent cover and gasket. The cable connections are made using the 6.3mm male blade terminals which are fitted on the sides of the fuse box. 36 x 120 x 29mm

FBB6T - 6 Fuse Blade Fuse Box

From £0.00 (exc. VAT)

6-Way Fuse Box. Standard blade fuse box complete with transparent cover and gasket. The cable connections are made using the 6.3mm male blade/Lucar terminals which are fitted on the sides of the fuse box. 36 x 100 x 29mm

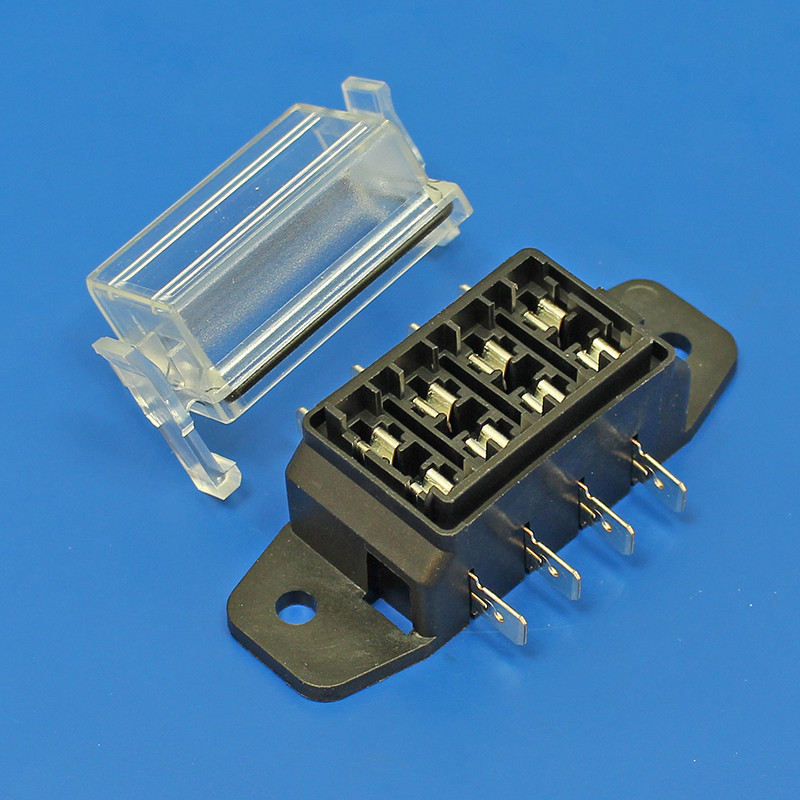

FBB4T - 4 Fuse Blade Fuse Box

From £0.00 (exc. VAT)

4-Way Fuse Box. Standard blade fuse box complete with transparent cover and gasket. The cable connections are made using the 6.3mm male blade/Lucar terminals which are fitted on the sides of the fuse box. 36 x 80 x 29mm

CA1433 - Fuse box - 8 fuse

From £0.00 (exc. VAT)

Small two way fuse box with a screw down knurled nut on the top. Base dimensions approximately 119mm x 45mm. Accepts 8 modern type Bosch/continental cartridge fuses (available from this site part CONTIFUSE and most garages). Black

659 - Fuse box - 6 fuse

From £0.00 (exc. VAT)

Fuse box, black finish, accepts 6 modern type Bosch/continental cartridge fuse (available from this site part CONTIFUSE and most garages). 28mm high screw on lid - 90mm x 44mm.

658 - Fuse box - 4 fuse

From £0.00 (exc. VAT)

Fuse box, black finish, accepts 4 modern type Bosch/Continental cartridge fuse (available on this site part CONTIFUSE and most garages). 28mm high lid, 61mm x 44mm. Top held on with captive screw.

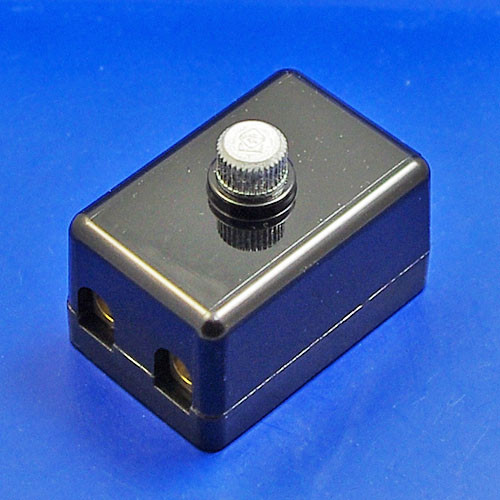

CA1394 - Fuse box - 2 fuse

From £0.00 (exc. VAT)

Small two way fuse box with a screw down knurled nut on the top. Base measures approx 45mm x 30mm. Accepts 2 modern type Bosch/continental cartridge fuse (available from this site part CONTIFUSE and most garages). Black.

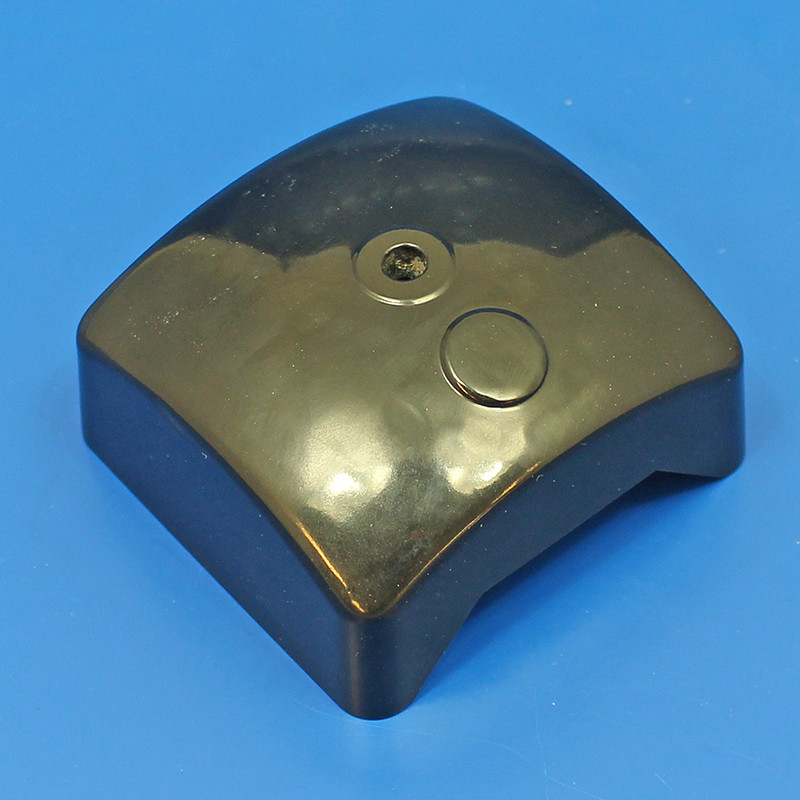

Replacement plain black cover for Lucas SF4 type fuse boxes. Supplied without screw fitting.

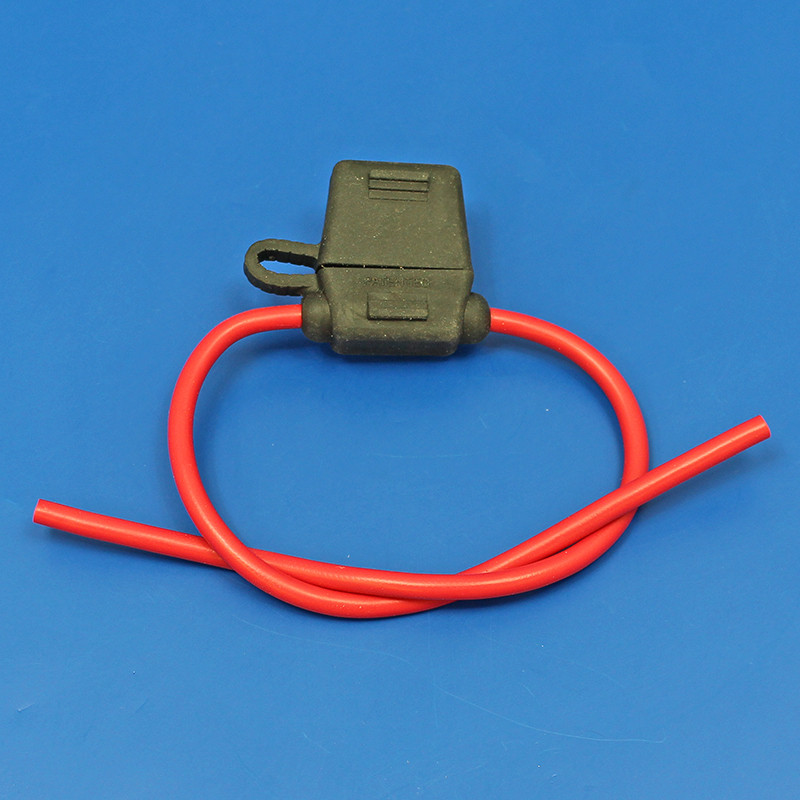

Master fuse, takes blade/spade fuse, sealed in insulated rubber case. Red 1.0mm^2 wire.

Master fuse, takes blade/spade fuse, sealed in insulated rubber case. Orange 2.0mm2 wire.

908D - SF4 type fuse box - Durite

From £0.00 (exc. VAT)

Durite reproduction of the Lucas 54038067 SF4 (four glass fuse type) fuse box, a good alternative to our part number 908. Base 73mm x 72mm x approx 60mm overall height. Centre screw to lid top, black bakelite. Supplied without fuses. See part number GLASSFUSE.

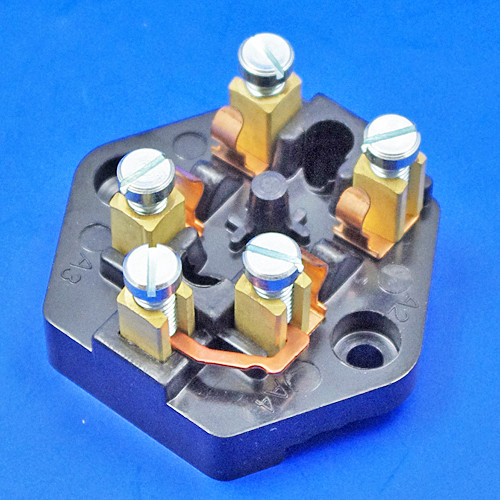

Lucas type SF6, 37132, 2 fuse box, terminals marked B, A2, A3 & A4, base 60mm x 52mm two screw fixing, black bakelite. Supplied without fuses - see part number GLASSFUSE.

Standard 12v blade fuse but with a clever LED on the top that lights when the fuse is blown, available in 5, 10, 15, 20, 25 and 30amp. Price per fuse.

12v glass fuses 29mm long (7amp is 25mm long) - available in 1, 2, 3, 5, 7, 8, 10, 15, 20, 25, 35, and 50amp. Suitable diameter and length for the glass fuse holders on this site. Blow rating is specified as double the continuous rating i.e. 30amp fuse will blow at 30amp, with a continuous rating of 15amp.

Standard 12v blade fuses available in 5, 7.5, 10, 15, 20, 25 and 30amp.

Lucas 4FJ fuse box for two glass type fuses.  Complete with cover and multiple 6.3 mm spade/Lucar connectors. Fitted to the MGB, Midget and Austin Healey Sprite from 1962 to 1970 and to the Mini & Triumph TR3a to TR4a.

Original lucas trafficator switch screw down bezel/cover and lens, as fitted to the SD84 dash/panel switch. Ivory screw cover with red warning lens and washer to keep bulb from making contact with the lens.

Fuse box equivalent to the Lucas type SF4, four glass fuse type box. Base 73mm x 72mm x approx 60mm overall height. Centre screw to lid top, black bakelite. Supplied without fuses - see part number GLASSFUSE. Lid marked with 'MODEL SF4 TYPE' in raised lettering

FBB10L - LED blade fuse box, 10 fuses

From £0.00 (exc. VAT)

10 Fuse LED Blade Fuse Box complete with transparent cover. Consists of 1 x 5mm positive power input stud which feeds each of the blade fuses. Each fuse has a 6.3mm male blade terminal and a red LED indicator light next to it that glows when the fuse has blown. The boxes can be fixed to a firm surface using the mounting holes.Comes Supplied with 2 x 10 amp, 2 x 15 amp, 2 x 20 amp, 2 x 25 amp and 2 x 30 amp fuses.

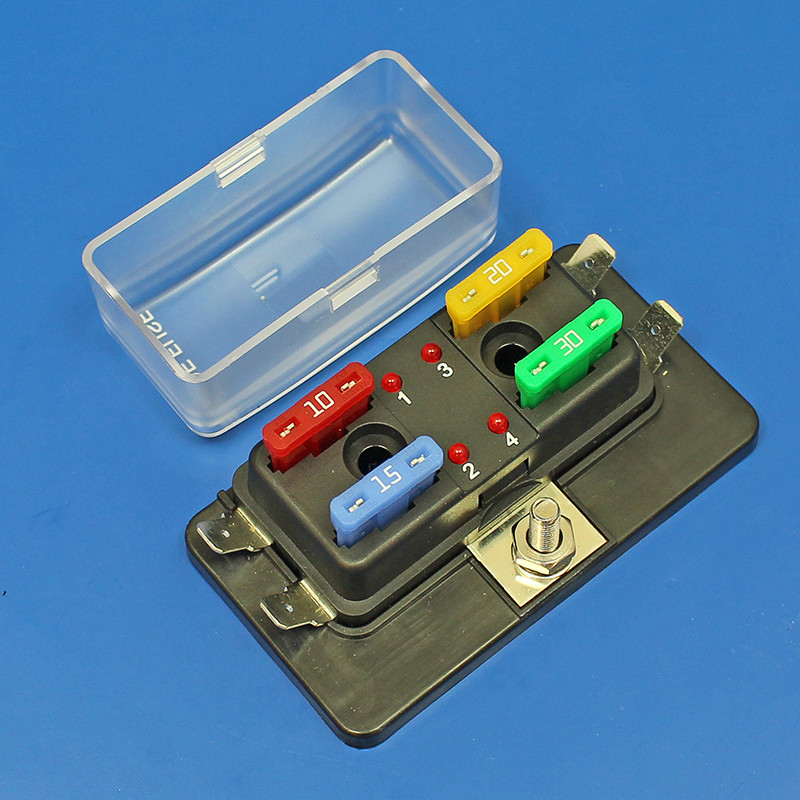

FBB4L - LED blade fuse box, 4 fuses

From £0.00 (exc. VAT)

LED Blade Fuse Box complete with transparent cover. Consists of 1 x 5mm positive power input stud which feeds each of the blade fuses. Each fuse has a 6.3mm male blade terminal and a red LED indicator light next to it that glows when the fuse has blown. The boxes can be fixed to a firm surface using the mounting holes.Comes Supplied with 1 x 10 amp, 1 x 15 amp, 1 x 20 amp and 1 x 30 amp fuses.

FBB6L - LED blade fuse box, 6 fuses

From £0.00 (exc. VAT)

Smaller size 6 Fuse LED Blade Fuse Box complete with transparent cover. Consists of 1 x 5mm positive power input stud which feeds each of the blade fuses. Each fuse has a 6.3mm male blade terminal and a red LED indicator light next to it that glows when the fuse has blown. The boxes can be fixed to a firm surface using the mounting holes. Comes Supplied with 1 x 5 amp, 1 x 10 amp, 1 x 15 amp, 1 x 20 amp, 1 x 25 amp and 1 x 30 amp fuses.
