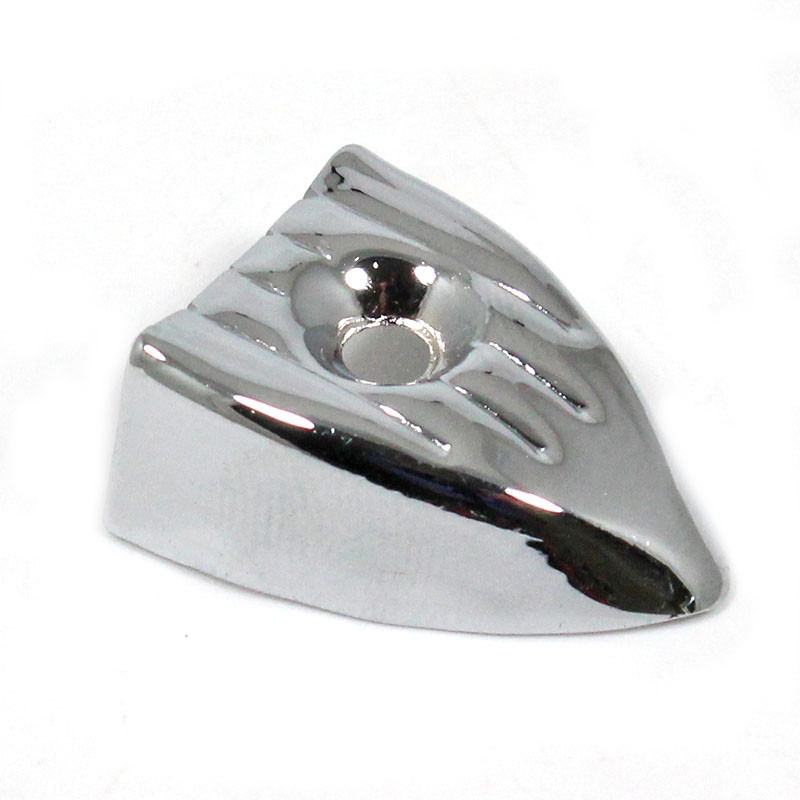

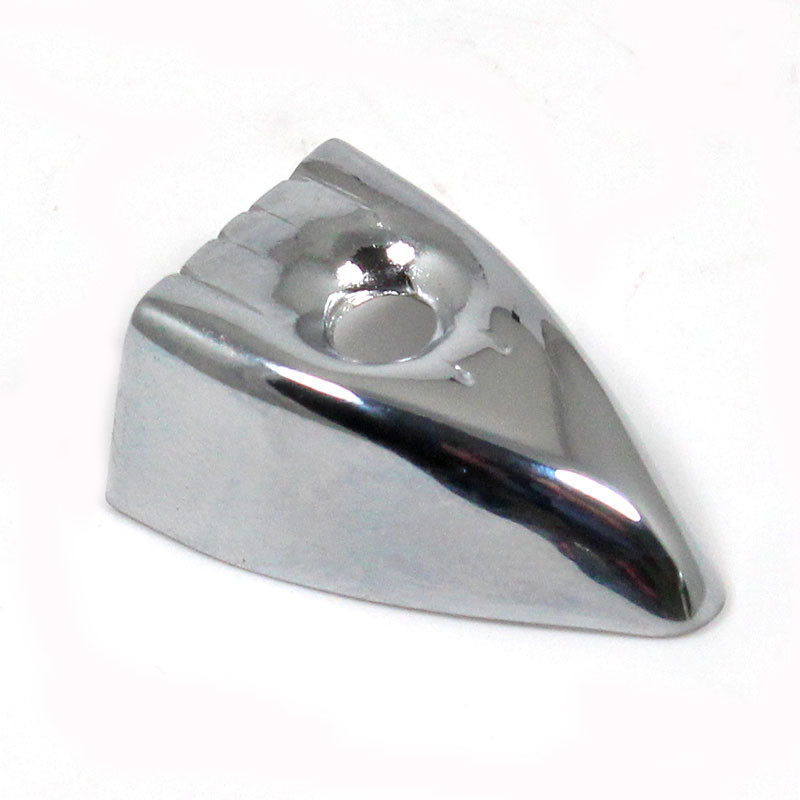

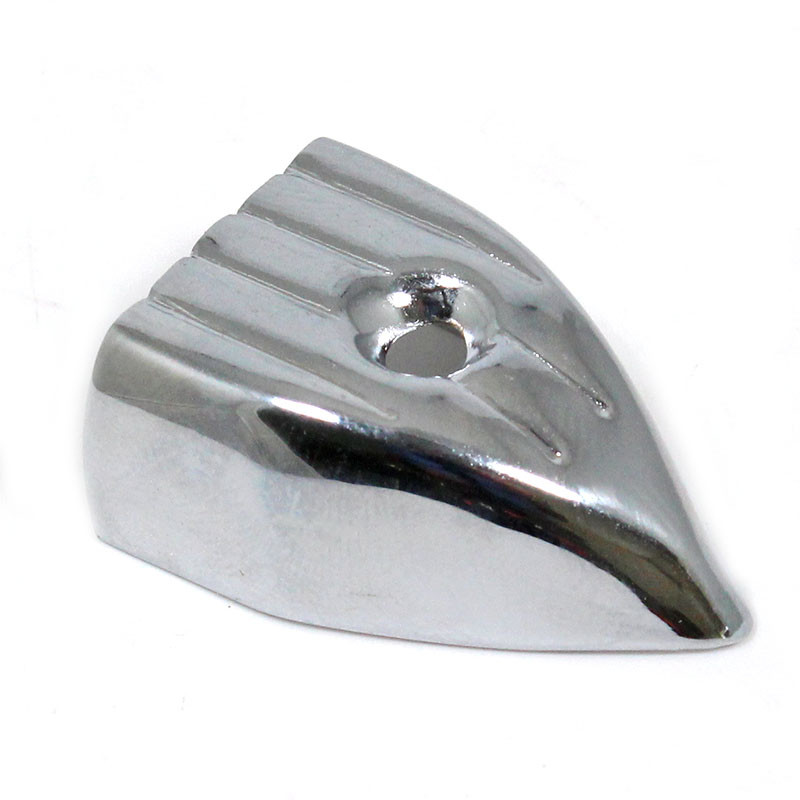

Pressed chrome on brass light pattern end cover plate, supplied with a drilled 3.6mm hole with flutes around the hole. A finishing end for aluminium/rubber tread strips. Offered for the three different size widths of aluminum - 16mm, 19mm and 22m. Please note that the measure is the outside width of the aluminium tread strip. The rubber needs to be trimmed so it buts up to the end cover when the cover is over the end of the aluminium strip. For a heavier weight cast end cover please see part number 970 -- fits over 22mm wide base strip

Pressed chrome on brass light pattern end cover plate, supplied with a drilled 3.6mm hole with flutes around the hole. A finishing end for aluminium/rubber tread strips. Offered for the three different size widths of aluminum - 16mm, 19mm and 22m. Please note that the measure is the outside width of the aluminium tread strip. The rubber needs to be trimmed so it buts up to the end cover when the cover is over the end of the aluminium strip. For a heavier weight cast end cover please see part number 970 -- Fits over 16mm wide base strip

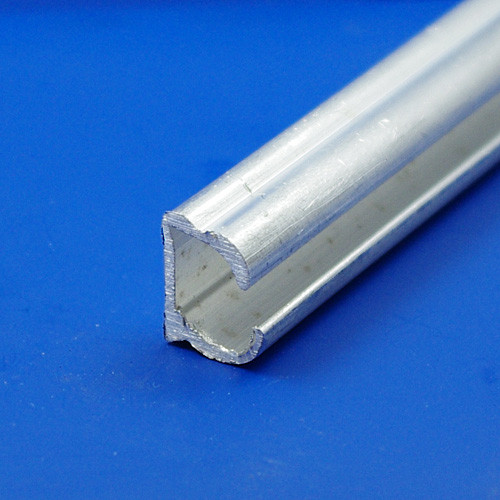

Moulded extruded aluminium running board strip and black rubber filler strip (not fitted). Click on "bigger image" for more detail dimensions Sold by the meter, i.e. only full meter quantity orders please regardless of cut lengths. This product can be sent straight or, if over 1.1m can be coiled to reduce shipping fees. Please select options below to cut down the length and/or to coil. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee. -- Aluminium supplied WITH rounded rubber filler strip

Moulded extruded aluminium running board strip and black rubber filler strip (not fitted). Click on "bigger image" for more detail dimensions Sold by the meter, i.e. only full meter quantity orders please regardless of cut lengths. This product can be sent straight or, if over 1.1m can be coiled to reduce shipping fees. Please select options below to cut down the length and/or to coil. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee. -- Aluminium supplied WITH rounded rubber filler strip

Moulded extruded aluminium running board strip supplied with or without rounded black rubber filler strip (not fitted). Click on "bigger image" for more detail dimensions Sold by the meter, i.e. only full meter quantity orders please regardless of cut lengths. This product can be sent straight or, if over 1.1m can be coiled to reduce shipping fees. Please select options below to cut down the length and/or to coil. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee. -- Aluminium supplied WITH rounded rubber filler strip

Moulded extruded aluminium running board strip and ribbed black rubber filler strip (not fitted).  Sold by the meter, i.e. only full meter quantity orders please regardless of cut lengths. This product can be sent straight or, if over 1.1m can be coiled to reduce shipping fees. Please select options below to cut down the length and/or to coil. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee. -- Aluminium supplied with ribbed rubber filler strip

Pressed chrome on brass light pattern end cover plate, supplied with a drilled 3.6mm hole with flutes around the hole. A finishing end for aluminium/rubber tread strips. Offered for the three different size widths of aluminum - 16mm, 19mm and 22m. Please note that the measure is the outside width of the aluminium tread strip. The rubber needs to be trimmed so it buts up to the end cover when the cover is over the end of the aluminium strip. For a heavier weight cast end cover please see part number 970 -- Fits over 19mm wide base strip

Fluted angle, running board edge 21mm x 21mm. Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Fluted angle, nickel plated brass running board edging. Measures 18mm across by 18 mm down the side with 6 ribs on top. 1.7mm thick flat side with 2mm thick fluted section - 1mm thick in flute troughs. This item was used in the Edwardian and early vintage period. Sold as 2 metre lengths but can be cut to reduce delivery charges. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Fluted angle, solid brass running board edging. Measures 18mm across by 18 mm down the side with 6 ribs on top. 1.7mm thick flat side with 2mm thick fluted section - 1mm thick in flute troughs. This item was used in the Edwardian and early vintage period. Suitable for polishing or nickel plating.  Sold as 2 metre lengths but can be cut to reduce delivery charges. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Fluted angle running board edge 25mm x 25mm. Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Drip moulding 20mm x 9mm. Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

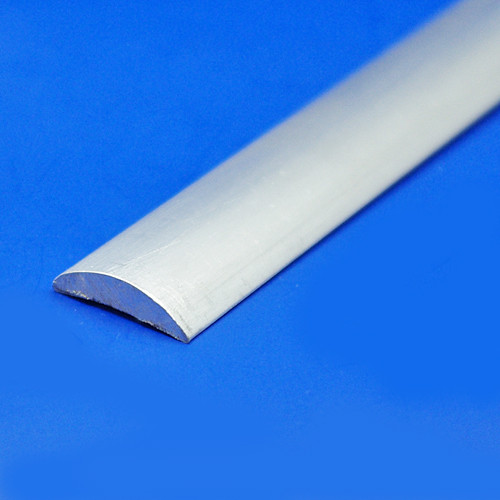

Half round section, 38mm base x 5mm, 2 metre lengths only. Click on "bigger image" for more detail dimensions. This product will incur an oversize shipping fee if uncut and sent straight. Alternatively please select options below to cut down the length and/or to coil to reduce the shipping fee. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Half round section, 32mm base x 5mm, 2 metre lengths only. Click on "bigger image" for more detail dimensions  This product will incur an oversize shipping fee if uncut and sent straight. Alternatively please select options below to cut down the length and/or to coil to reduce the shipping fee. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Half round section, 25mm base x 5mm, 2 metre lengths only. Click on "bigger image" for more detail dimension. This product will incur an oversize shipping fee if uncut and sent straight. Alternatively please select options below to cut down the length and/or to coil to reduce the shipping fee. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Half round section, 19mm base x 5mm, Sold in 2m lengths. Click on "bigger image" for more detail dimensions. This product will incur an oversize shipping fee if uncut and sent straight. Alternatively please select options below to cut down the length and/or to coil to reduce the shipping fee. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Half round section, 16mm wide base x 5mm, 2 metre lengths only. Click on "bigger image" for more detail dimensions. This product will incur an oversize shipping fee if uncut and sent straight. Alternatively please select options below to cut down the length and/or to coil to reduce the shipping fee. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Half round section, 13mm base x 5mm, 2 metre lengths only.  Click on "bigger image" for more detail dimensions This product will incur an oversize shipping fee if uncut and sent straight. Alternatively please select options below to cut down the length and/or to coil to reduce the shipping fee. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Moulded extruded aluminium running board strip and black rubber filler strip (not fitted). Click on "bigger image" for more detail dimensions Sold by the meter, i.e. only full meter quantity orders please regardless of cut lengths. This product can be sent straight or, if over 1.1m can be coiled to reduce shipping fees. Please select options below to cut down the length and/or to coil. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee. --

Moulded extruded aluminium running board strip and black rubber filler strip (not fitted). Click on "bigger image" for more detail dimensions Sold by the meter, i.e. only full meter quantity orders please regardless of cut lengths. This product can be sent straight or, if over 1.1m can be coiled to reduce shipping fees. Please select options below to cut down the length and/or to coil. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee. --

Moulded extruded aluminium running board strip supplied with or without rounded black rubber filler strip (not fitted). Click on "bigger image" for more detail dimensions Sold by the meter, i.e. only full meter quantity orders please regardless of cut lengths. This product can be sent straight or, if over 1.1m can be coiled to reduce shipping fees. Please select options below to cut down the length and/or to coil. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee. --

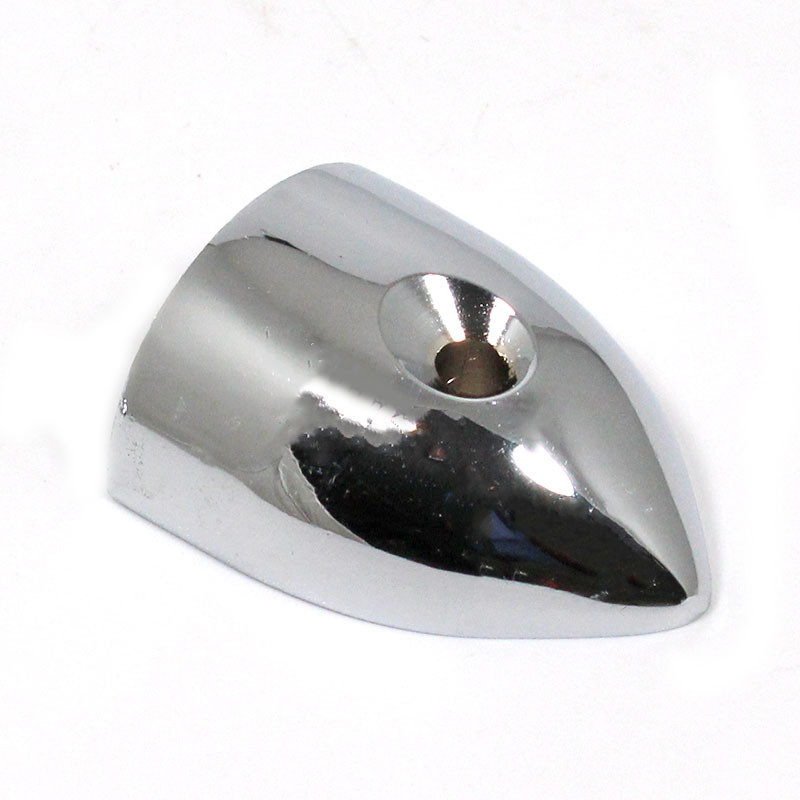

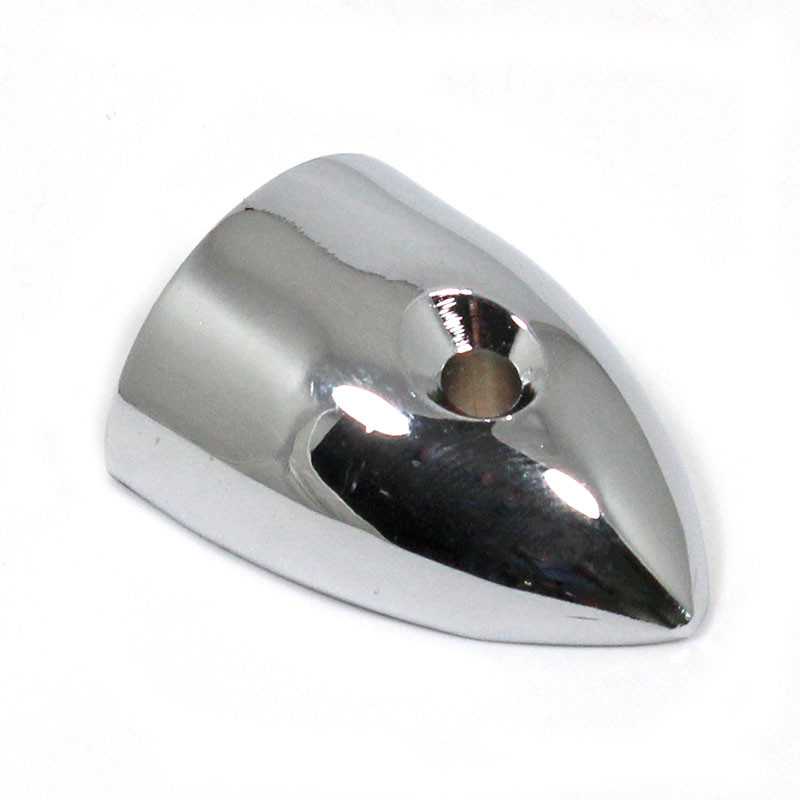

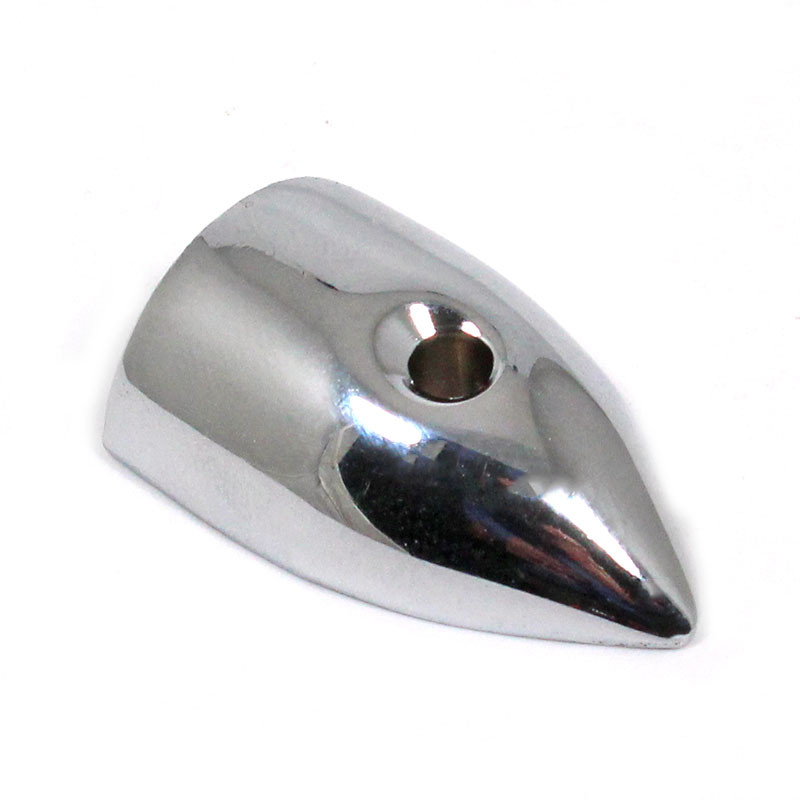

Cast chrome on brass heavy pattern end cover plate, supplied with a drilled hole. A finishing end for aluminium/rubber tread strips. Offered for the three different size widths of aluminum - 16mm, 19mm and 22m. Please note that the measure is the outside width of the aluminium tread strip. For a lighter weight pressed and fluted end cover please see part number 970A -- fits over 22mm wide base strip

Cast chrome on brass heavy pattern end cover plate, supplied with a drilled hole. A finishing end for aluminium/rubber tread strips. Offered for the three different size widths of aluminum - 16mm, 19mm and 22m. Please note that the measure is the outside width of the aluminium tread strip. For a lighter weight pressed and fluted end cover please see part number 970A -- Fits over 19mm wide base strip. At their highest point, these are approximately 12mm high.

Cast chrome on brass heavy pattern end cover plate, supplied with a drilled hole. A finishing end for aluminium/rubber tread strips. Offered for the three different size widths of aluminum - 16mm, 19mm and 22m. Please note that the measure is the outside width of the aluminium tread strip. For a lighter weight pressed and fluted end cover please see part number 970A -- fits over 16mm wide base strip

Tee section equal 16mm wide x 19mm. Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Fluted angle, running board edge 19mm x 19mm. Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions. Available in brass and nickel plated brass - please see part number CA1407B. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Tee section offset , 16mm wide x 19mm. Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions. Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Rounded angle, running board edge. 21mm x 20mm. Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Black rounded rubber tread filler for 22mm wide aluminium strip. Approx 16mm wide across base, 14mm wide neck, 9.2mm tall approx.

Gutter section with fold over flap to cover fixing screws when fitted. 16mm x 13mm, available in 7ft (2.13 metre) lengths only and will incur an oversize shipping fee. Click on "bigger image" for more detail dimensions.

Cope moulding, 25mm x 10mm. Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions  Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.

Black, rounded rubber tread filler for 16mm wide aluminium strip. 11mm wide across base, 8.5mm wide neck, 8.9mm tall approximately.

Black, rounded rubber tread filler for 19mm wide aluminium strip. Approx 15mm wide across base, 12.5mm wide neck, 8.7mm tall approx.

Black, ribbed rubber tread filler for 16mm wide aluminium strip. 10.2mm wide across base, 8mm wide neck, 6.4mm tall approx.

Offset 'T'  section. 22mm wide across top, flange 19mm x 2mm thick. Note the angle between flange and under top is 90 degree. Measure under face to flange approx 10.4mm and 9.2mm (the flange is set slightly off centre). Sold as 2 metre lengths but can be cut to reduce delivery charges. Click on "bigger image" for more detail dimensions Postal service can be used for lengths up to 710mm, standard courier service up to 1.1m, anything over this will incur the oversize fee.
