Knurled and slotted headlamp rim screw for Lucas L140, L150 etc. type headlamps. Overall length 33mm (head 9mm, thread length 24mm), head diameter 10mm. 2BA thread. Chrome plated brass. Offered as a lower cost alternative the 641 Daisy head screw.

Chome plated bronze bracket for Lucas type headlamps such as the L140. Fits inside the headlamp shell rim - the tongue fits through the slot which then accepts the rim fixing screw 641 in a 2BA threaded hole, with the base of screw 641 pulling on to catch 13016-A, located in the lamp rim. Dimensions 24mm x 13mm, threaded screw tongue 15mm wide x 13.5mm tall.

Chrome plated bronze bracket for Lucas type headlamps such as the L140. Fits through a slot in the headlamp rim, and the base of the daisy headed rim fixing screw (part number 641) locates in the split socket, with the threaded part screwing into catch 13016-B located in the lamp shell, pulling shell and rim together. Dimensions 38mm x 15mm, screw tongue 15mm wide x 9mm tall.

Used in Butler type lamps - stainless steel. Use with E1ADKN-13047

Butler type headlamp screw/stud and catch barrel/boss.

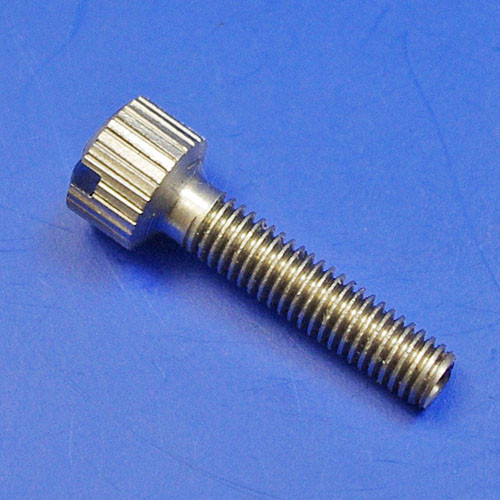

Stainless steel headlamp rim retaining screw, for use with E1ADKN-13050

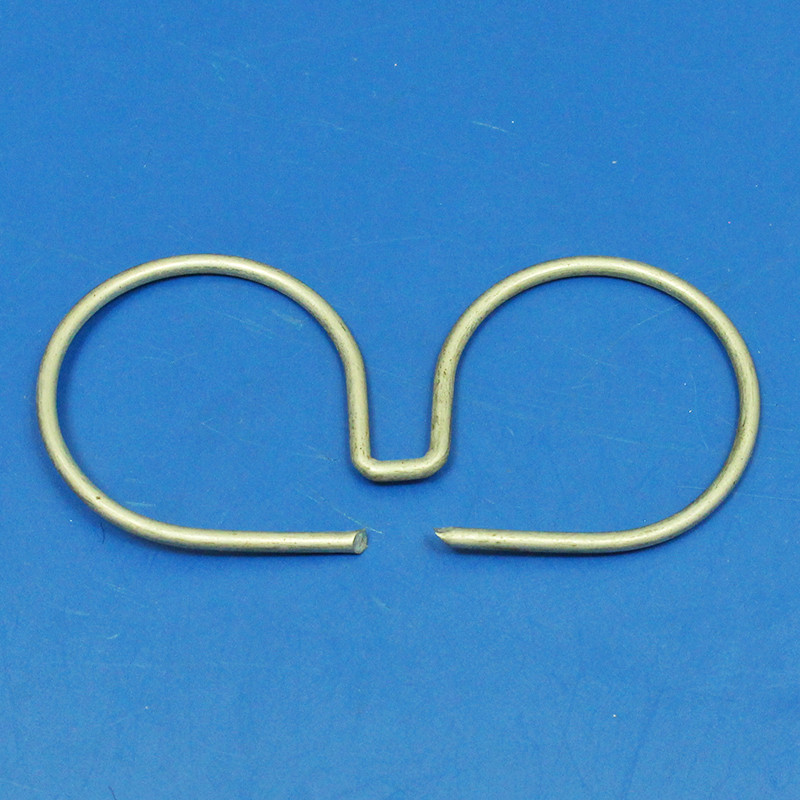

Spring (spectacle shape) for rims that use short rim catch clip (our 863B), equivaent to Lucas part number 509191

Chromium plated rim catch, for Lucas type head lamps, short style, overall dimensions 31mm long x 27mm wide, equivalent to original Lucas part number 509936. Use with 'spectacle' wire spring clip - our part number 864.

Chrome on bronze rim catch for Lucas head lamps, long type, overall dimensions 45mm long x 26mm wide. Makes Lucas assembly part no. 532590 with compression spring - part number 864A - and a small wire pin through the pre-drilled hole in the end of the catch.

Daisy head headlamp rim screw for the Lucas L140 & L150 headlamps, overall length 36mm (head 18mm, thread 18mm) head diameter 15mm tapering down to 9mm, with a 2BA thread. Chrome plated brass.

Silver painted bronze bracket. Fits inside headlamp rim, the tongue fits through the rim slot which then accepts rim fixing screw. Dimensions 36mm x 13mm, screw tongue 17mm wide x 13mm tall with 5mm slot.

Silver painted bronze bracket. Fits inside headlamp rim, tongue fits through rim slot which then accepts rim fixing screw. Dimensions 36mm x 18mm, screw tongue 17mm wide x 15mm tall with 5mm slot.

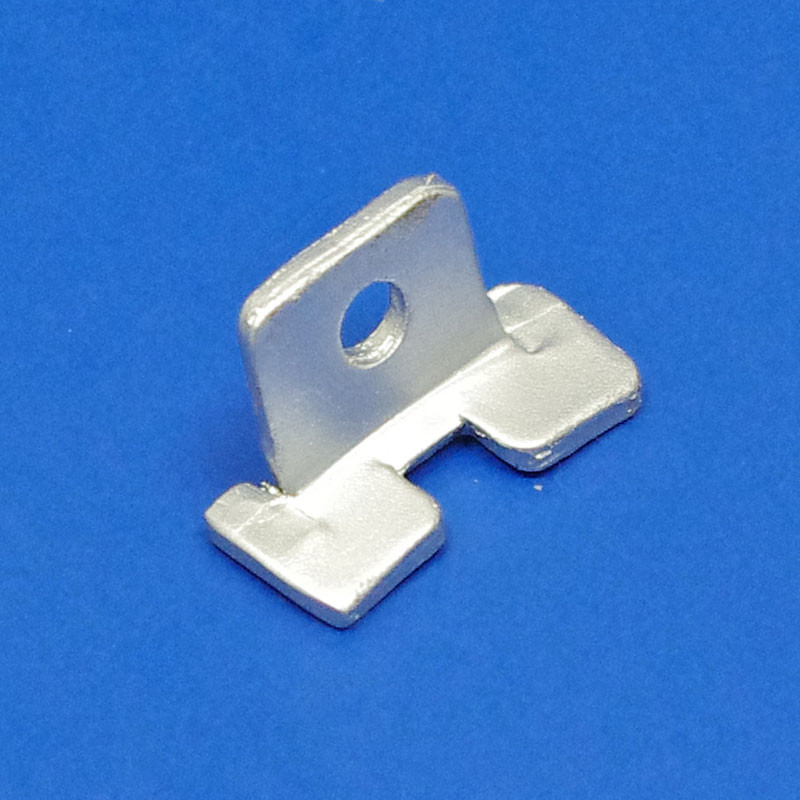

Silver painted bronze bracket for some Lucas type headlamps. Fits inside headlamp shell, the tongue fits through rim slot which then accepts a rim fixing screw through a plain 5mm diameter hole, that needs to be backed with a nut. Dimensions 28mm x 13mm, threaded screw tongue 18mm wide x 13.5mm tall.

Long daisy head head and spot lamp rim screw for some large Lucas headlamps including the P80, overall length 49mm (head 29mm, thread 20mm) head diameter 15mm tapering down to 9mm, with a 2BA thread. Chrome plated brass.

Compression spring for use with long rim catch part no. 863A. The spring is held in place by a small roll pin inserted through the end of the catch). Makes Lucas part no assembly 532590
