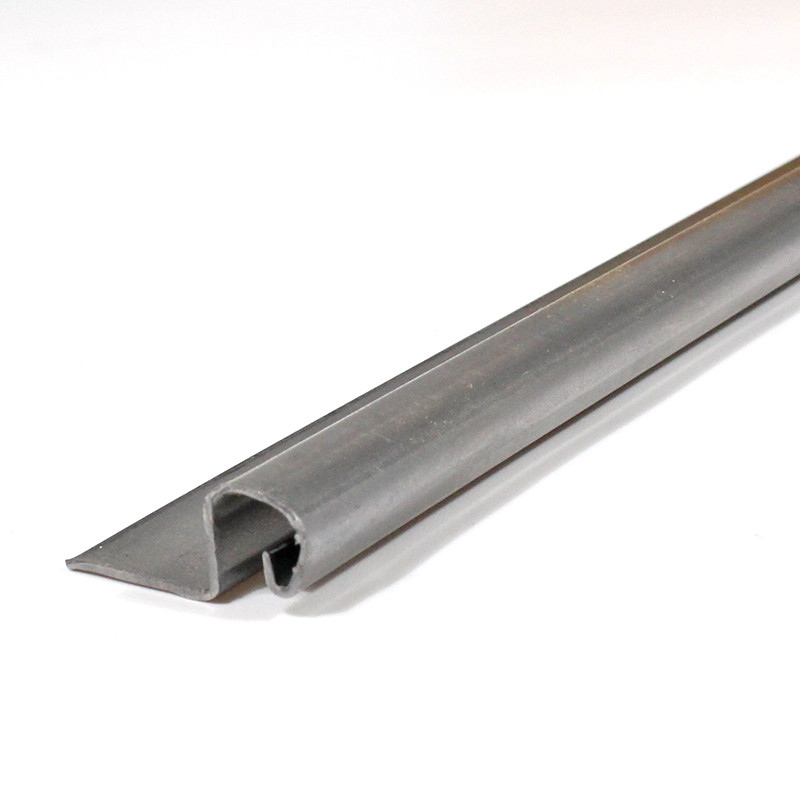

Folded steel side strip for sliding into bonnet strip, one piece 48"/1220mm long. Weld to flat panel. 25mm overall width (flange 14mm)  This product incurs the oversize shipping fee.

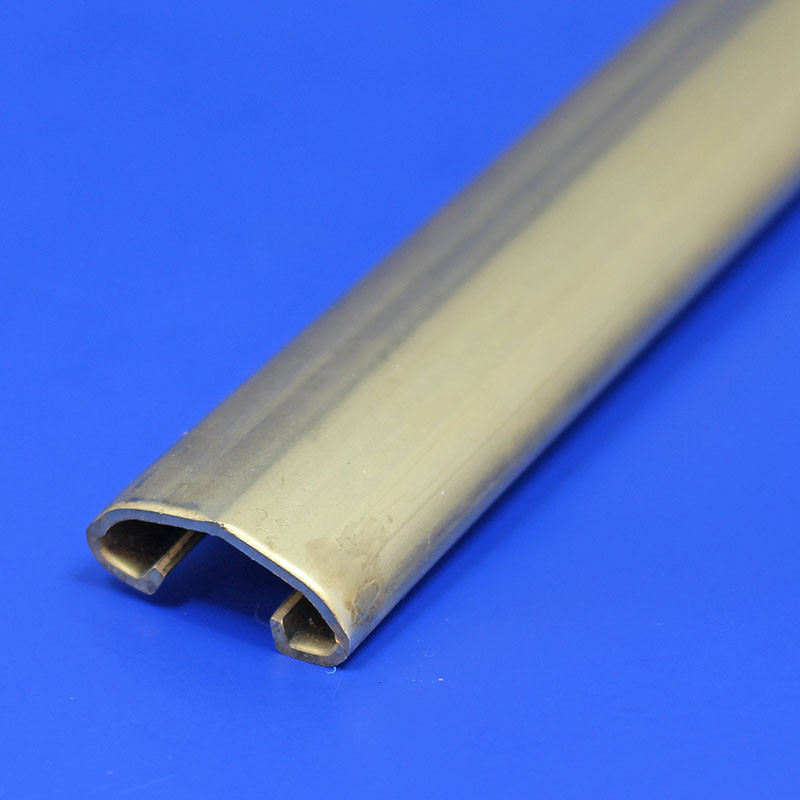

Brass folded centre bonnet strip. 60 inch length specially commissioned for long bonnet applications. 21mm wide and same profile as part number 16632. Side panels are folded and slide in place.  Can be nickel or chrome plated by customer This product incurs the oversize shipping fee.

Chrome on brass fitting. Base 45mm x 16mm, mounting holes 32mm centres.

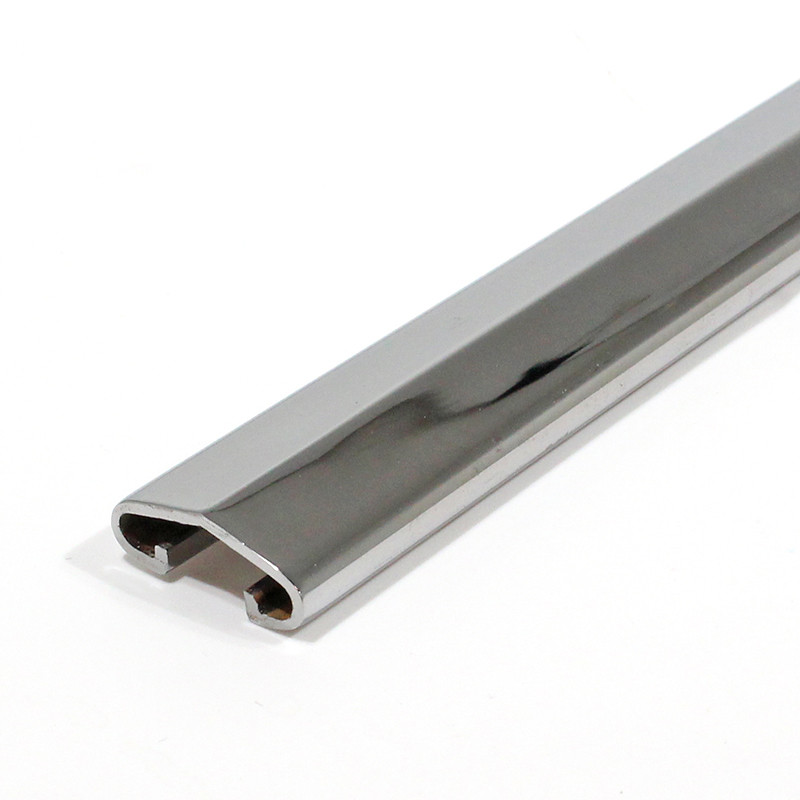

Chrome on brass folded centre bonnet strip, 845mm length (33.25") 21mm wide. Side panels are folded and slide in place. This part is offered in the longer length for the listed vehicles. The length is correct for the 'Upright' models, it will be necessary to cut it shorter for application on E83W and Model Y applications. Please note when packed at its full length this part is over the overall maximum length to be sent by the postal service, and will have to go with our courier.

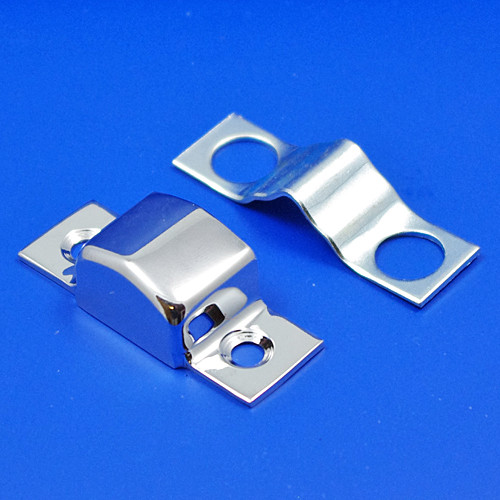

Chrome plate end cover and clamp for centre strip. base 51mm x 13mm, holes 35mm apart.

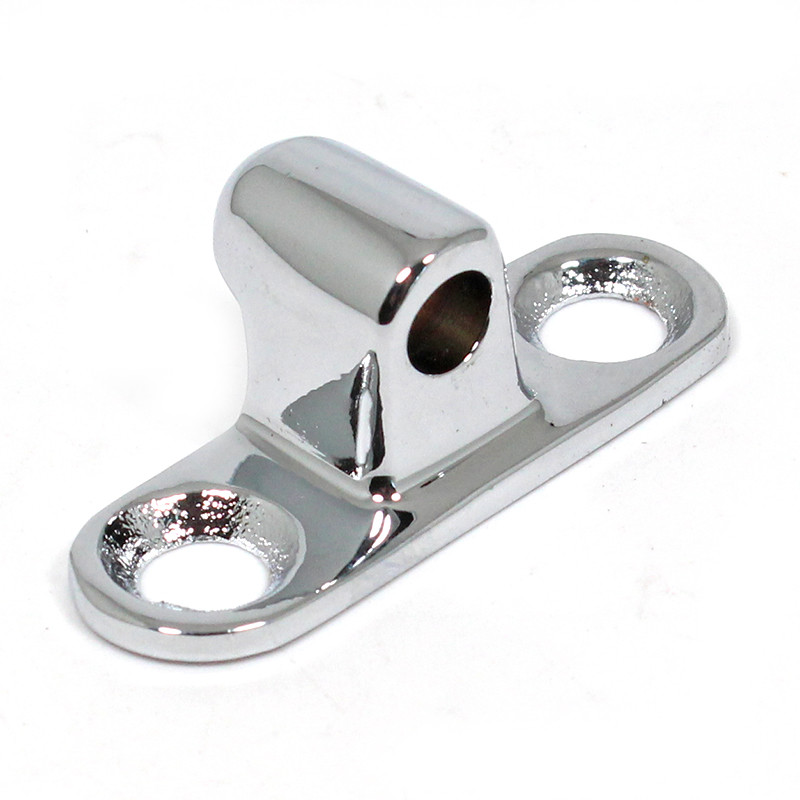

Chrome plate on brass fitting with 1/4" (approx 6mm) hole. base 45mm x 15mm, mounting holes 31mm apart.

Chrome plate on brass fitting with 1/4" (approx 6mm) hole. Base 45mm x 15mm, mounting holes 31mm apart.

Chrome on brass fitting. Base approx 45mm x 16mm, 28mm deep overall. Mounting holes 31mm centres.

Chrome on brass fitting. Base 48mm x 19mm, mounting holes 32mm centres.

Heavy bonnet hinge 3/8"/10mm diameter pin, 16 swg (1.6mm) flaps, 75mm across flaps when open, 51mm knuckles Brass or stainless steel flaps with stainless pin. 5ft/1.52m long only.  Please note this product incurs an oversize shipping charge -- Stainless steel flaps with stainless pin.

Chrome plated hinge with securing studs on rear to fit through panel. Used as original part on Morris Minor 1951 onward as bonnet hinge. Base 191mm x 26mm overall. Four securing studs, supplied with nuts. NOTE that these hinges have the hinge pin set at an angle. Sold in PAIRS only.

Chrome plated boot or bonnet hinge with securing studs on rear to fit through panel. Used on Triumph TR4, Spitfire, Herald, Nash Metropolitan, Standard 8 & 10. Base 123mm x 22mm overall. Three securing studs, supplied with nuts. NOTE that these hinges have an angled base. Sold in PAIRS only.

Medium weight hinge, 1/4" (6mm) steel pin, 16 swg (1.6mm) unpolished brass, flaps undrilled, 2 1/2" (64mm) across flats when open, 2" (51mm) knuckles. Offered in specific lengths. -- Please note this product incurs an oversize shipping charge

Medium weight hinge, 1/4" (6mm) steel pin, 16 swg (1.6mm) unpolished brass, flaps undrilled, 2 1/2" (64mm) across flats when open, 2" (51mm) knuckles. Offered in specific lengths. -- Please note this product incurs an oversize shipping charge

Heavyweight hinge, 5/16" (8mm) steel pin, 16 swg (1.6mm) unpolished brass flap undrilled, 3" (76mm) across flats when open, 2" (51mm) knuckles. Offered in 3ft, 4ft or 6ft lengths -- Please note this product incurs an oversize shipping charge

Heavyweight hinge, 5/16" (8mm) steel pin, 16 swg (1.6mm) unpolished brass flap undrilled, 3" (76mm) across flats when open, 2" (51mm) knuckles. Offered in 3ft, 4ft or 6ft lengths -- Please note this product incurs an oversize shipping charge

Medium weight hinge, 1/4" (6mm) steel pin, 16 swg (1.6mm) unpolished brass, flaps undrilled, 2 1/2" (64mm) across flats when open, 2" (51mm) knuckles. Offered in specific lengths. --

Heavyweight hinge, 5/16" (8mm) steel pin, 16 swg (1.6mm) unpolished brass flap undrilled, 3" (76mm) across flats when open, 2" (51mm) knuckles. Offered in 3ft, 4ft or 6ft lengths --

Folded type of hinge, brass pin, stainless steel flange, 2" (approx 51mm) knuckles. We supply these hinges in sets of one top hinge and two side hinges OR as individual hinges: Top hinge 1/4" (6mm) pin 18swg (1.2mm) approx 1.3/8" (approx 35mm) open Side hinge 3/16" (4mm) pin, 18swg (1.2mm), approx 1.1/4" (approx 32mm) open Overall length 4ft (1.22m). Prices at listed.  Please note this product incurs an oversize shipping charge --

Folded type of hinge, brass pin, stainless steel flange, 2" (approx 51mm) knuckles. We supply these in sets of one top hinge and two side hinges OR as individual hinges: Top hinge 5/16" (8mm) pin 18swg (1.2mm) approx 1.3/4" (approx 44mm) open Side hinge 1/4" (6mm) pin, 18swg (1.2mm), approx 1.1/4" (approx 32mm) open Overall length 5ft (1.52m), prices as listed.  Please note this product incurs an oversize shipping charge --

Heavy bonnet hinge 3/8"/10mm diameter pin, 16 swg (1.6mm) flaps, 75mm across flaps when open, 51mm knuckles Brass or stainless steel flaps with stainless pin. 5ft/1.52m long only.  Please note this product incurs an oversize shipping charge -- Brass flaps with stainless pin.

Heavyweight, stainless folded type top bonnet hinge, 3/8" (10mm) brass pin, 16swg stainless steel flap folded towards pin. Approx 45mm when open, 50mm knuckles, 54" (1.37m) long.

Folded type of hinge, brass pin, stainless steel flange, 2" (approx 51mm) knuckles. We supply these hinges in sets of one top hinge and two side hinges OR as individual hinges: Top hinge 1/4" (6mm) pin 18swg (1.2mm) approx 1.3/8" (approx 35mm) open Side hinge 3/16" (4mm) pin, 18swg (1.2mm), approx 1.1/4" (approx 32mm) open Overall length 4ft (1.22m). Prices at listed.  Please note this product incurs an oversize shipping charge --

Folded type of hinge, brass pin, stainless steel flange, 2" (approx 51mm) knuckles. We supply these hinges in sets of one top hinge and two side hinges OR as individual hinges: Top hinge 1/4" (6mm) pin 18swg (1.2mm) approx 1.3/8" (approx 35mm) open Side hinge 3/16" (4mm) pin, 18swg (1.2mm), approx 1.1/4" (approx 32mm) open Overall length 4ft (1.22m). Prices at listed.  Please note this product incurs an oversize shipping charge --

Folded type of hinge, brass pin, stainless steel flange, 2" (approx 51mm) knuckles. We supply these in sets of one top hinge and two side hinges OR as individual hinges: Top hinge 5/16" (8mm) pin 18swg (1.2mm) approx 1.3/4" (approx 44mm) open Side hinge 1/4" (6mm) pin, 18swg (1.2mm), approx 1.1/4" (approx 32mm) open Overall length 5ft (1.52m), prices as listed.  Please note this product incurs an oversize shipping charge --

Folded type of hinge, brass pin, stainless steel flange, 2" (approx 51mm) knuckles. We supply these in sets of one top hinge and two side hinges OR as individual hinges: Top hinge 5/16" (8mm) pin 18swg (1.2mm) approx 1.3/4" (approx 44mm) open Side hinge 1/4" (6mm) pin, 18swg (1.2mm), approx 1.1/4" (approx 32mm) open Overall length 5ft (1.52m), prices as listed.  Please note this product incurs an oversize shipping charge --

Chrome on brass folded centre bonnet strip, 21mm wide and sold in 1270mm (50") lengths. Side panels are folded and slide in place.  This product incurs the oversize shipping fee.
