single connector - pack 50 piece
double connector - pack 25 pieces
Crimp type nipples for snap connectors for 2mm^2 wire cross sectional area. Alternative to solder type (part number 560). 4.75mm bullet head diameter. Fits 558 and 559 part number snap connector terminal blocks. Per packet of 10 pieces.
Crimp type nipples for snap connectors for 1mm^2 wire cross sectional area. Alternative to solder type (part number 560). 4.75mm bullet head diameter. Fits 558 and 559 part number snap connector terminal blocks. Per packet of 10 pieces.
Rubber cavity plug for Superseal Connectors SS1 to SS6. Pack of 10.
12V cigarette lighter socket plug. Solder to your 12V appliance to allow connection to your 12V auxiliary power /cigarette lighter socket, unfused, 12V or 24V, solder connections 10A maximum
Two sockets with different diameter pins, often used for inspection lamps etc. Equivalent to Lucas sockets 38605A, as supplied by Lucas for fitting Lucas plug 304919. Will fit our part 960P.
Two pin plug with different diameter pins (pins 13mm centres, plug pins 3.18mm diameter for black socket, 3.81mm diameter red socket). Often used for inspection lamps etc. Equivalent to Lucas plug 304919, as supplied by lucas for fitting sockets 38605A. Please note that we supply plug only
Two panel mount sockets (red and black) and and one plug - which has two equal size pins (pins 13mm centres, plug pins 3.18mm diameter). Often used for inspection lamps etc. Equivalent to Lucas inspection lamp plug 545025 and insulated sockets 305514.
Plier tool for inserting bullet connector nipples into connector.
Double (joins 4 wires) snap connector supplied with solder type nipples. Per packet of 10 pieces complete.
Single (joins 2 wires) snap connector. Supplied with solder type nipples. Per packet 10 pieces complete.
Solder type nipples for snap connector, (note already supplied with parts 558 and 559 part numbers in 'Terminal and Connector Blocks'). 4.75mm diameter. Per packet of 10 pieces.
Spare/replacement Rubber seals for Superseal Connectors SS1 to 6. Re-use a terminal, change wiring or correct a mistake! Replacement male pins and female sockets are also available.
1-Way, single wire Superseal connector for applications where a waterproof joint is required. Connectors are suitable for cable sizes from 0.5 to 1.5mm^2. Kit includes male and female housings, terminals and seals. IP67 seal rating.
Loose Male terminals suitable for cable sizes 1.0 to 1.5mm^2 and as used in Superseal Connectors as SS1 to 6. Re-use a terminal, change wiring or correct a mistake!
Loose Female Terminals - suitable for cable sizes 1.0 to 1.5mm^2 and as used in Superseal Connectors as SS1 to 6. Re-use a terminal, change wiring or correct a mistake!
6-way Superseal connector for applications where a waterproof joint is required. Connectors are suitable for cable sizes from 0.5 to 1.5mm^2. Kit includes MALE and FEMALE housing, terminals and seals. IP67 seal rating.
5-way Superseal connector for applications where a waterproof joint is required. Connectors are suitable for cable sizes from 0.5 to 1.5mm^2. Kit includes MALE and FEMALE housing, terminals and seals. IP67 seal rating.
4-way Superseal connector for applications where a waterproof joint is required. Connectors are suitable for cable sizes from 0.5 to 1.5mm^2. Kit includes MALE and FEMALE housing, terminals and seals. IP67 seal rating.
3-way, triple wire Superseal connector for applications where a waterproof joint is required. Connectors are suitable for cable sizes from 0.5 to 1.5mm^2. Kit includes MALE and FEMALE housing, terminals and seals. IP67 seal rating.
2-way Superseal connector for applications where a waterproof joint is required. Connectors are suitable for cable sizes from 0.5 to 1.5mm^2. Kit includes MALE and FEMALE housing, terminals and seals. IP67 seal rating.
Solder type bullet terminal. Pack of 100 pieces.

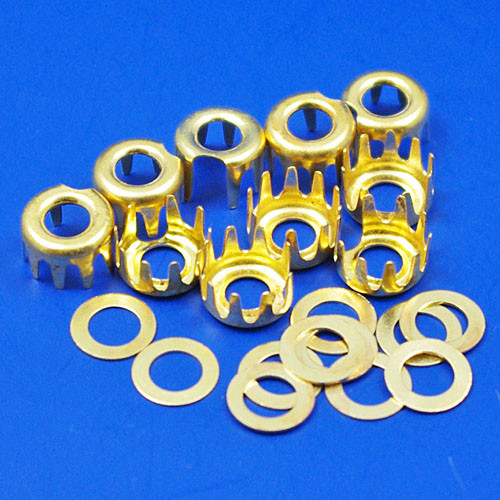

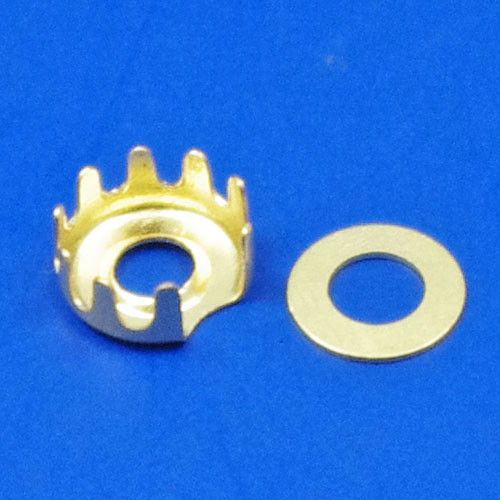

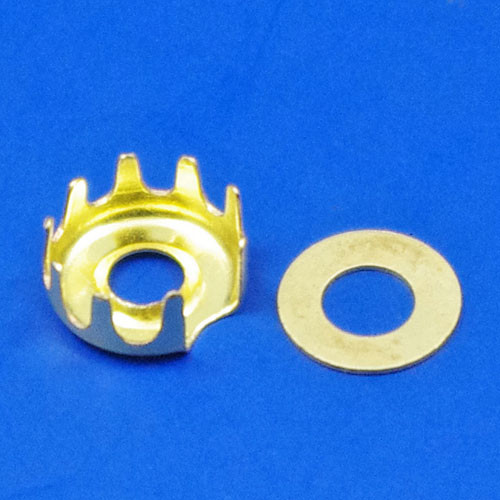

Ross courtney type wire end terminal (post terminal), pronged cup and washer two part terminal in self colour brass. A stripped wire is laid into the pronged cup with the flat washer put on top, then crimp the prongs over trapping washer and wire. Offered in different sizes. Discount for 100 pieces or more of one item (i.e. 10 packets of 10 pieces) -- Approx 8.6mm diameter with 4BA hole (3.5mm) - for 8 amp cable
Ross courtney type wire end terminal (post terminal), pronged cup and washer two part terminal in self colour brass. A stripped wire is laid into the pronged cup with the flat washer put on top, then crimp the prongs over trapping washer and wire. Offered in different sizes. Discount for 100 pieces or more of one item (i.e. 10 packets of 10 pieces) -- approx 10.3mm diameter with 3BA hole (4.0mm) - for 16 amp cable
Ross courtney type wire end terminal (post terminal), pronged cup and washer two part terminal in self colour brass. A stripped wire is laid into the pronged cup with the flat washer put on top, then crimp the prongs over trapping washer and wire. Offered in different sizes. Discount for 100 pieces or more of one item (i.e. 10 packets of 10 pieces) -- approx 10.2mm diameter with 2BA hole (4.95mm) - for 16 amp cable
Ross courtney type wire end terminal (post terminal), pronged cup and washer two part terminal in self colour brass. A stripped wire is laid into the pronged cup with the flat washer put on top, then crimp the prongs over trapping washer and wire. Offered in different sizes. Discount for 100 pieces or more of one item (i.e. 10 packets of 10 pieces)
Solderless battery terminal, round post, state whether positive or negative required. -- negative
Solderless battery terminal, round post, state whether positive or negative required. -- Positive
Push in cable electrical terminal as used by Lucas in rolled end terminals on lamps and switches etc. Bared cable is pushed through the hollow middle and then pulled back over the outside before the terminal sleeve is pushed into the receiving clip.
Wire stripping tool for PVC cables. For copper cored cable up to 4 square mm cross sectional area. Incorporates cable cutter and crimper.
solder type end fixing terminal for usual 160amp battery lead/cable, fixing hole 8mm, cable inlet 8mm.
