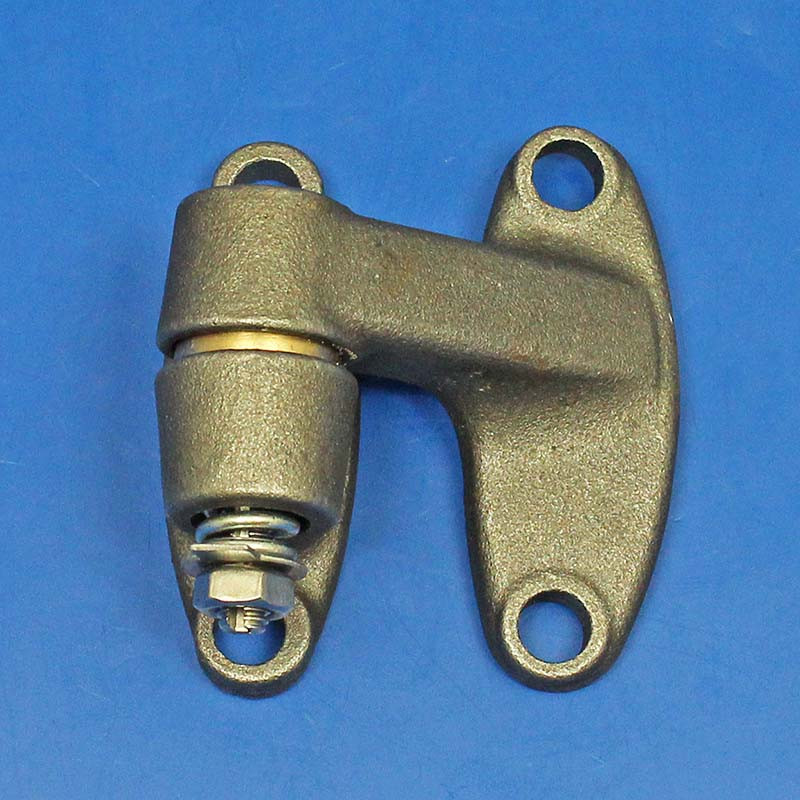

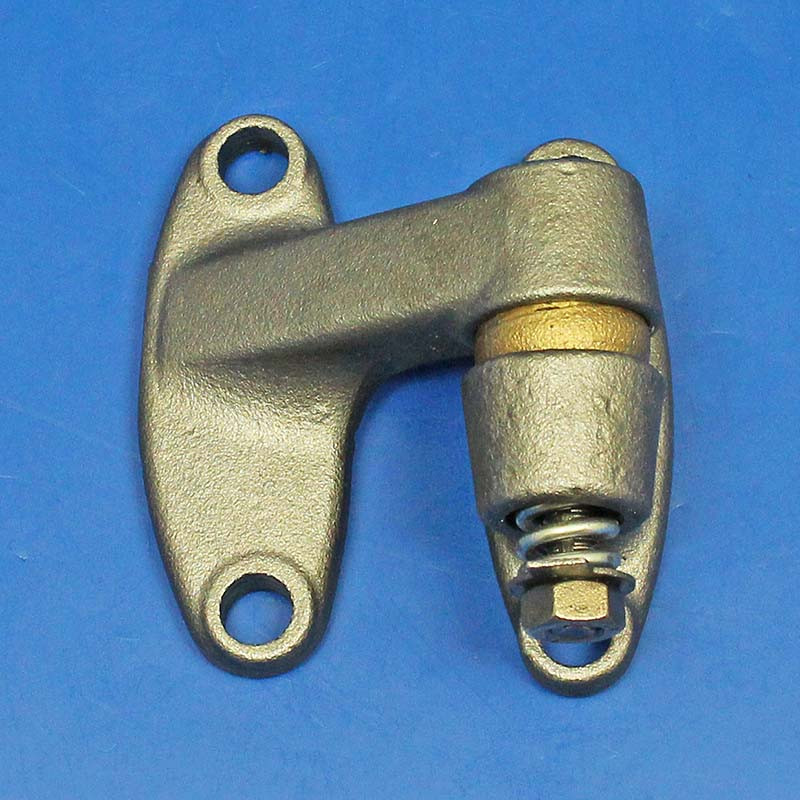

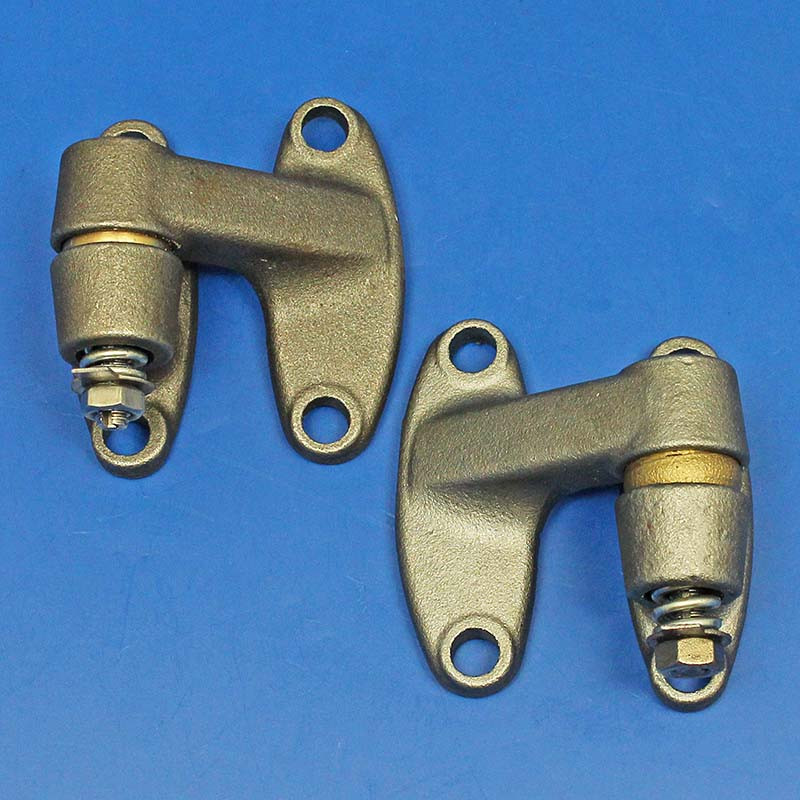

Self aligning, maleable iron van door hinge 66mm tall x 57mm wide, vertical hole centres 52mm. fitted with a 50mm long hinge pin and a 3/4" round brass ball. Left hand and right hand available. Also note that the weight of the door is always carried in the cup NOT hanging from it. --
Self aligning, maleable iron van door hinge 66mm tall x 57mm wide, vertical hole centres 52mm. fitted with a 50mm long hinge pin and a 3/4" round brass ball. Left hand and right hand available. Also note that the weight of the door is always carried in the cup NOT hanging from it. --
Self aligning, maleable iron van door hinge 66mm tall x 57mm wide, vertical hole centres 52mm. fitted with a 50mm long hinge pin and a 3/4" round brass ball. Left hand and right hand available. Also note that the weight of the door is always carried in the cup NOT hanging from it.

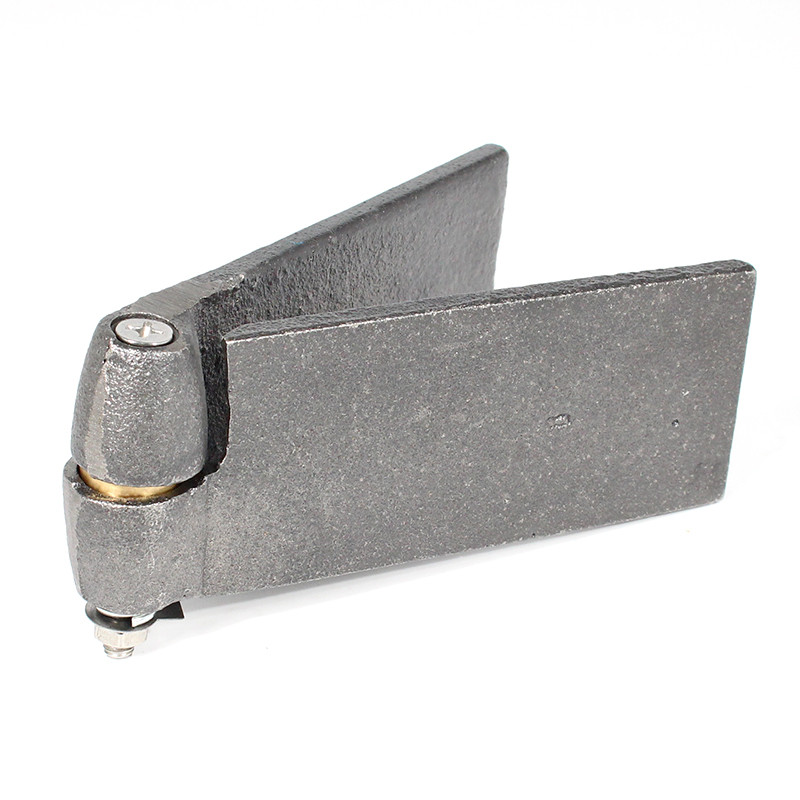

Self aligning, maleable iron - self colour. Flaps un-drilled, size 2" x 5" (approx 50mm x 125mm), left hand and right hand. Note the swinging part sits on the brass ball which sits in the cup of the fixed part. Note that the hinge required will depend on whether the door is front or rear mounted. Our left and right description is based on front mounting.
Self aligning, maleable iron - self colour. Flaps un-drilled, size 2" x 5" (approx 50mm x 125mm), left hand and right hand. Note the swinging part sits on the brass ball which sits in the cup of the fixed part. Note that the hinge required will depend on whether the door is front or rear mounted. Our left and right description is based on front mounting. --
Self aligning, maleable iron - self colour. Flaps un-drilled, size 2" x 5" (approx 50mm x 125mm), left hand and right hand. Note the swinging part sits on the brass ball which sits in the cup of the fixed part. Note that the hinge required will depend on whether the door is front or rear mounted. Our left and right description is based on front mounting. --
Solid brass undrilled, steel pin, flap size 2" high x 4" wide (approx 50mm x 100mm) when closed. 5 equal knuckles, 1/2" (12.5mm) parallel sided for the pin, material thickness 5mm at open end of hinge. Milled from our pattern extrusion.
Solid brass undrilled, steel pin, flap size 1 1/2“ x 4" (approx 38mm x 100mm) when closed. 5 equal knuckles, 1/2" (12.5mm) parallel sided for the pin, material thickness 5mm at open end of hinge. Milled from our pattern extrusion.
Solid brass undrilled, steel pin. Flap size 1 1/2“ high x 2" wide (approximately 38mm x 50mm) when closed. 5 equal knuckles, 1/2" (12.5mm) parallel sided for the pin, material thickness 5mm at open end of hinge. Milled from our pattern extrusion.
Solid brass undrilled, steel pin, flap size 1 3/4" high x 2" wide (approx 45mm x 50mm) when closed. 5 equal knuckles, 1/2" (12.5mm) parallel sided for the pin, material thickness 5mm at open end of hinge. Milled from our pattern extrusion.
Solid brass undrilled, steel pin, flap size 1 3/4" high x 4" long (approx 45mm x 100mm) when closed. 5 equal knuckles, 1/2" (12.5mm) parallel sided for the pin, material thickness 5mm at open end of hinge. Milled from our pattern extrusion.
Heavy brass door hinge, undrilled flaps. 2 1/2" high x 4" wide (approx 63mm x 100mm) when closed. 5 equal knuckles, 1/2" (12.5mm) parallel sided for the pin, material thickness 5mm at open end of hinge. Milled from our pattern extrusion.
Large cast iron type van door hinge 150mm wide x 102mm tall. Left hand and right hand available. Note illustration shows left hand item. One pair remaining.
Cast iron type van door hinge 80mm wide x 76mm tall. Left hand and right hand available. Please note illustration shows left hand part.
