699:CONTAINER - Spring indicator

From £0.00 (exc. VAT)

Early style arrow pointer

Replacement shaped rubber bush at end of early Armstrong friction shock absorbers. Approximate dimensions base (foot print) 46mm x 23mm, height 37mm, 26mm wide at widest point with 12mm hole through centre. This rubber bush is supplied to us in a roll and cut in-house, the length may vary (minimum 46mm). You will need to cut the slit into the base.

Transfer only for 506 models. Red, black, white colours. High quality sticker with strong adhesive.

Transfer only for 502 model. Red, black white colours. High quality sticker with strong adhesive.

Type 101 shock absorber indicator dial. 89mm diameter, F Repusseau & Cie. Paris. Black print on aluminium.

Andre Telecontrol pump reservoir. Dimensions: overall length 6.25", main body 4.8" long, 1.75" diameter, end caps 1.8" diameter. Supplied with T piece & non return ball & spring.

ATCDC - Andre Telecontrol - Dash unit

From £0.00 (exc. VAT)

Andre telecontrol dash hand control unit, complete with knob and pre-filled internal regulator bag and housing. Dimensions:- body length 4.562", body diameter 1.75", mounting hole centres 1.15". To fit, pre-fill pipes leading to regulator, unwind knob to release pressure, remove blanking plug (keep this end uppermost so as to not lose fluid) and connect pipework, bleed system as a brake system. USE ONLY 30% GLYCERINE/WATER OR ANTIFREEZE MIX. DO NOT USE BRAKE FLUID, MINERAL OIL, ATF etc.

Andre telecontrol front and rear pressure gauges for mounting in dash panel. White digits on black background. Chrome rim. Gauge body diameter 1.575", bezel diameter 1.73". -- rear pressure gauge

Andre telecontrol front and rear pressure gauges for mounting in dash panel. White digits on black background. Chrome rim. Gauge body diameter 1.575", bezel diameter 1.73". -- front pressure gauge

Andre telecontrol front and rear pressure gauges for mounting in dash panel. White digits on black background. Chrome rim. Gauge body diameter 1.575", bezel diameter 1.73".

699a - Spring indicator - 1/2" hole

From £0.00 (exc. VAT)

Early style arrow pointer -- Suits later type units

699 - Spring indicator - 9/16" hole

From £0.00 (exc. VAT)

Early style arrow pointer -- Suits early units with larger, 9/16" diameter centre bolt

Steel inner sleeve tube to be used with 1164R bush, fits over standard mounting studs, dimensions 41mm long x 19mm diameter x 14mm bore.

Round Andre Telecontrol pressure bag. Fits on outside of Telecontrol unit under the metal rounded cover. 91mm diameter, 9mm thick at edge, 17mm thick at centre.

Rectangular type expander bag for shock absorber. 98mm long x 44mm wide x 9mm thick, with 19mm diameter in centre.

Type 103 shock absorber indicator dial 101mm diameter, T.B. Andre & Co Ltd London. Black print on aluminium.

Type 101 shock absorber indicator dial. 89mm diameter, T.B. Andre & Co Ltd London. Black print on aluminium.

12657 - Spring indicator

From £0.00 (exc. VAT)

Locking tag/pointer.

Early style small rounded end pressure spring, approx. 75mm diameter, as fitted to type 302 shock absorber units

Early style small rounded end pressure spring, in black enamel approx. 70mm dia, with 14mm hole, as fitted to type 298 shock absorber units

Pressure spring, 70mm diameter, used on shock absorber model 502. 1/2" centre hole.

Small raised edge printed Andre Hartford Shock Absorber London dial, 63mm diameter. Colour black, red and white on tinned backing plate. Used on motorcycles etc.

Silentbloc rubber/metal bush 1 1/4“ (31.83mm) outside diameter x 9/16" (14.37mm) inside diameter x 1 5/8" (40mm) long.

Silentbloc rubber/steel bush 1 1/8" (28.65mm) outside x 9/16” (14.37mm) inside x 1 9/16" (40mm) long.

Silentbloc rubber/steel bush 15/16" (24mm) outside x 7/16" (11mm) inside x 1 1/8" (28mm) long.

Steel rivets to secure the centre washer and brass friction disc (types 12611, 859 and 12602) to the steel backing. Per packet of 3 pieces.

12654 - Pressed locating washer

From £0.00 (exc. VAT)

Centre washer - pressure fit or riveted to backplate

12659 - Locking tag

From £0.00 (exc. VAT)

Locking tag for bolt head.

Early style large rounded end pressure spring, approx. 90mm diameter, as fitted to type 306 shock absorber units

Pressure spring, 90mm diameter, used on model 506 shock absorbers. 1/2" centre hole.

Later style large wood friction disc - 106mm OD x 39mm ID - Available in approximately 3.5mm (thin) or 5.0mm (thick) thickness

Later style large wood friction disc - 106mm OD x 39mm ID - Available in approximately 3.5mm (thin) or 5.0mm (thick) thickness --

Later style large wood friction disc - 106mm OD x 39mm ID - Available in approximately 3.5mm (thin) or 5.0mm (thick) thickness --

Later type small wood friction disc/wood - 82mm OD x 41mm ID  -Available in approximate 3.5mm (thin) or 5.00mm (thick) thickness.

Later type small wood friction disc/wood - 82mm OD x 41mm ID  -Available in approximate 3.5mm (thin) or 5.00mm (thick) thickness. --

Later type small wood friction disc/wood - 82mm OD x 41mm ID  -Available in approximate 3.5mm (thin) or 5.00mm (thick) thickness. --

Early type wood friction disc. 112mm x 38mm x 5mm thick

Early style wood friction disc - 88mm x 38mm x 5mm thick

Early type wood friction disc. 80mm x 38mm x 5mm thick

Early type brass "rivet-on" friction disc. 115mm diameter with single folded up edge. For rivet pack, see part number 983.

Early type brass "rivet-on" friction disc. 90mm diameter with single turned up edge. For rivet pack, see part number 983.

Early type brass "rivet-on" friction disc. 82mm diameter with single turned up edge. For rivet pack, see part number 983.

Later style large brass disc. Double return outer edge, large hole 40mm diameter, outer diameter 115mm.

Later style small brass friction disc. Double return outer edge, large hole 40mm diameter, outer size 90mm diameter.

Type 103 shock absorber indicator dial. 103mm diameter, F Repusseau & Cie. Paris. Black print on aluminium

Type 100bis shock absorber indicator dial. 80mm diameter, F Repusseau & Cie. Paris. Black print on aluminium.

12656:CONTAINER - Centre bush

From £0.00 (exc. VAT)

Nylon centre bush, to replace wood/steel item. 1/2" (12.5mm) or 9/16" (14.3mm) clearance bore. External measurements - approx 21mm diameter x 15mm long.

12656B - Centre bush - 9/16" bore

From £0.00 (exc. VAT)

Nylon centre bush, to replace wood/steel item. 1/2" (12.5mm) or 9/16" (14.3mm) clearance bore. External measurements - approx 21mm diameter x 15mm long. --

12656A - Centre bush - 1/2" bore

From £0.00 (exc. VAT)

Nylon centre bush, to replace wood/steel item. 1/2" (12.5mm) or 9/16" (14.3mm) clearance bore. External measurements - approx 21mm diameter x 15mm long. --

Supplied with nut, collar and flats on section under head.

Supplied with nut, collar and flats on section under head. --

Supplied with nut, collar and flats on section under head. --

Supplied complete with nut, 2 7/8" (74mm) long for M type shock absorber models

Supplied complete with nut, 2" (51mm) long for 'S' type shock absorber models

Supplied complete with nut, 2 1/8" (54mm) long, used on type 'S' shock absorber units

Supplied complete with nut, 3" (70mm) long. Used on type 'M' shock absorber units

90mm diameter, printed black on tin plate - The B & D Stabilizer, Bentley & Draper Ltd, 4 Fenchurch Avenue, London. Only one dial used per shock absorber unit.

115mm diameter, printed black on tin plate - The B & D Stabilizer, Bentley & Draper Ltd, 4 Fenchurch Avenue, London. Only one dial used per shock absorber unit

Red, white & black printed indicator dial with raised edge. 105mm diameter. Andre Hydro telecontrol shock absorber type HT33. Used on square bag type. Note three holes.

Replacement Andre telecontrol control regulator adjuster knob. As original pattern with brass fitting sleeve.

Replacement dash control regulator bladder bag, with outer brass sleeve housing. This fits inside the dashboard housing.

Type HFC, white print on black domed dial, 82mm diameter. Used on external round pressure bag type.

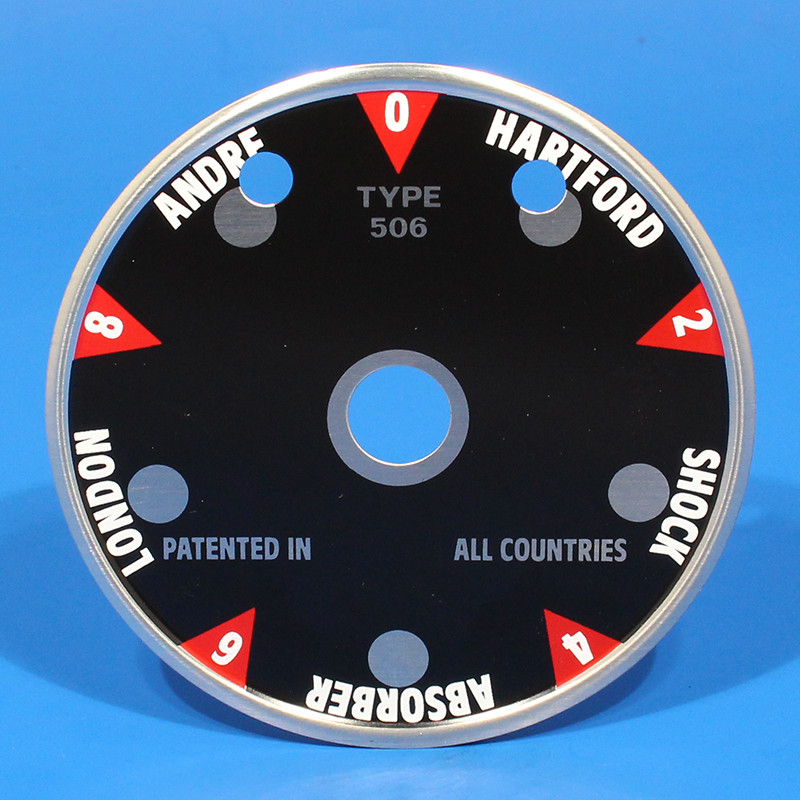

Large raised edge indicator dial for type 506. Diameter 108mm

Small raised edge indicator dial for type 502/198. Diameter 82mm.

Special tapered castle nut for Andre Hartford shock absorbers, mounting on to chassis bolt. Chamfered base, deep slots for cross pinning, thread 1/2" BSF

Mounting stud for Armstrong friction shock absorbers - where rubber fits over the peg. For later Morris Cowley car and van and Morris Minor etc. Please note only 10mm available

Mounting bolt for Andre Hartford shock absorber, 1/2" BSF threads both ends, 9/16" shaft for bush, hexagon 11/16" (17mm) long.

Mounting bolt for Andre Hartford shock absorber, 1/2" BSF threads both ends, 9/16" shaft for bush, hexagon 1/8" (3mm) long.

Mounting bolt for Andre Hartford shock absorber, 1/2" BSF threads both ends, 9/16" shaft for bush, hexagon 15/16" (24mm) long.

Rubber block bush for insertion directly into end of shock absorber arm, approx dimensions 36mm long x 30mm diameter x 15mm bore, requires a certain amount of dexterity when fitting.
