Steel AC filter banjo. 22.2mm outer diameter of sealing faces. 16mm inner diameter one face, 12.8mm inner diameter the other face. 16mm wide banjo head. Barbed hosetail for 5/16" ID fuel fipe. Secure with nut and bolt fuel pipe clip or swaged ferrule.

Brass AC filter banjo. 23.2mm outer diameter of sealing faces. 15.4mm inner diameter one face, 13.3mm inner diameter the other face. 13.7mm wide banjo head. Barbed hosetail for 5/16" ID fuel fipe. Secure with nut and bolt fuel pipe clip or swaged ferrule.

Brass AC filter banjo. 23.2mm outer diameter of sealing faces. 15.4mm inner diameter one face, 13.3mm inner diameter the other face. 13.7mm wide banjo head. Solder socket for 3/8" OD copper pipe.

Brass SU type over flow banjo with solder socket for 3/16" OD copper pipe. 21mm outer diameter of sealing faces. 13mm inner diameter one face, 10mm inner diameter the other face. 9.5mm wide banjo head.

Steel SU type banjo bolt that fits T1, T2 & T4 float chamber lids. 3/8" BSPP thread. 24mm long under hex head (22mm long under shoulder) 16.6mm diameter plain section, 5.9mm diameter through hole with chamfer entry, 11.1mm bore, 22.7mm across flats. Total length 28.7mm.

Brass SU type banjo bolt that fits T1, T2 & T4 float chamber lids. 3/8" BSPP thread. 24mm long under hex head (22mm long under shoulder) 16.6mm diameter plain section, 5.9mm diameter through hole with chamfer entry, 11.1mm bore, 22.7mm across flats. Total length 28.7mm.

Push on connection type STEEL banjo for SU type carburetters - with single barbed connection for 1/4" ID fuel hose. Secure hose with nut and bolt fuel pipe clip or swaged ferrule. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

Push on connection type STEEL banjo for SU type carburetters - with single barbed connection for 5/16" ID fuel hose. Secure hose with nut and bolt fuel pipe clip or swaged ferrule. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

Push on connection type STEEL banjo for SU type carburetters - with single plain connection for 5/16" ID fuel hose. Secure hose with nut and bolt fuel pipe clip or swaged ferrule. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

Push on connection type banjo for SU type carburetters - with twin barbed connection for 5/16" ID fuel hose at 90 degrees. Secure hose with nut and bolt fuel pipe clip or swaged ferrule. Machined brass with silver soldered barbed connections. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

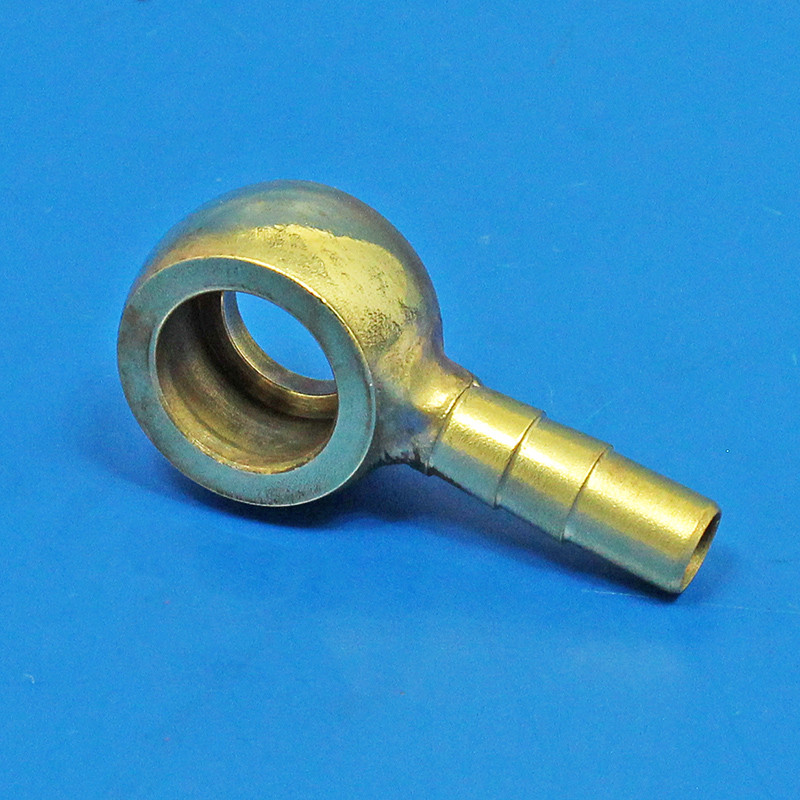

Push on connection type banjo for SU type carburetters - with single barbed connection for 5/16" ID fuel hose. Secure hose with nut and bolt fuel pipe clip or swaged ferrule. Machined brass with silver soldered barbed connection. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

Push on connection type banjo for SU type carburetters - with single plain connection for 5/16" ID fuel hose. Secure hose with nut and bolt fuel pipe clip or swaged ferrule. Machined brass with silver soldered plain connection. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

Male threaded type banjo for SU type carburetters - with twin 1/4" BSP male threads at 180 degrees, both with a 60 degree cone for solder nut and nipple connection. Please see part numbers CA121 for 1/4" BSPP nut and either CA126 solder nipple for 1/4" OD pipe, or CA127 for solder nipple for 5/16" OD pipe. Machined brass with silver soldered threaded connection. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

Solder type banjo for SU type carburetters - 5/16 " outer diameter copper pipe is soldered into the two banjo sockets. Machined brass with silver soldered socket connections at 180 degrees. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

Solder type banjo for SU type carburetters - 5/16 " outer diameter copper pipe is soldered into the two banjo sockets. Machined brass with silver soldered socket connections at 90 degrees. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

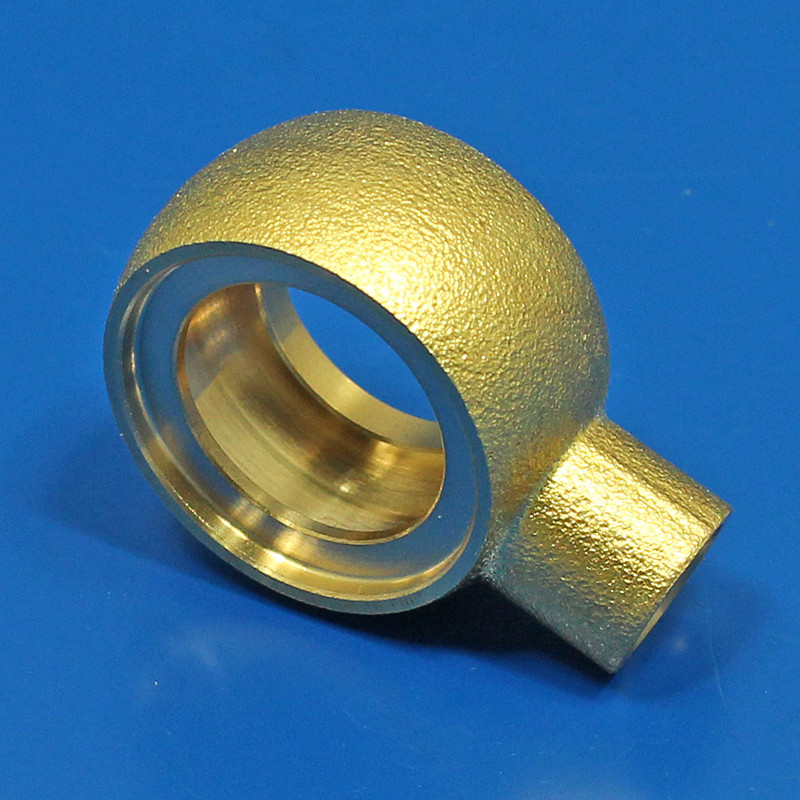

Solder type banjo for SU type carburetters - 5/16 " outer diameter copper pipe is soldered into the banjo socket. Cast, machined brass. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.

Single banjo coupling with 1/4" compression fitting and 1/4" BSP thread

Solder type banjo union supplied complete with 3/8" BSP bolt and washers. The 3/8" copper pipe is soldered into the banjo socket. If a smaller pipe is to be fitted a packing piece can be also fitted before the solder is applied to fill the gap.

Banjo union supplied complete with bolt and washers for Solex carbs. Banjo body is machined with a 1/4" hole into which 1/4" pipe is directly soldered. Brass body, steel bolt with washers. Thread on bolt is M12 x 1.25.

Solder type banjo union supplied complete with 1/4"BSP bolt and washers. The 5/16 " copper pipe is soldered into the banjo socket. If a smaller pipe is to be fitted a packing piece can be also fitted before the solder is applied to fill the gap.

Solder type banjo union supplied complete 1/8" BSP with bolt and washers. The 5/16" copper pipe is soldered into the banjo socket. If a smaller pipe is to be fitted a packing piece can be also fitted before the solder is applied to fill the gap.

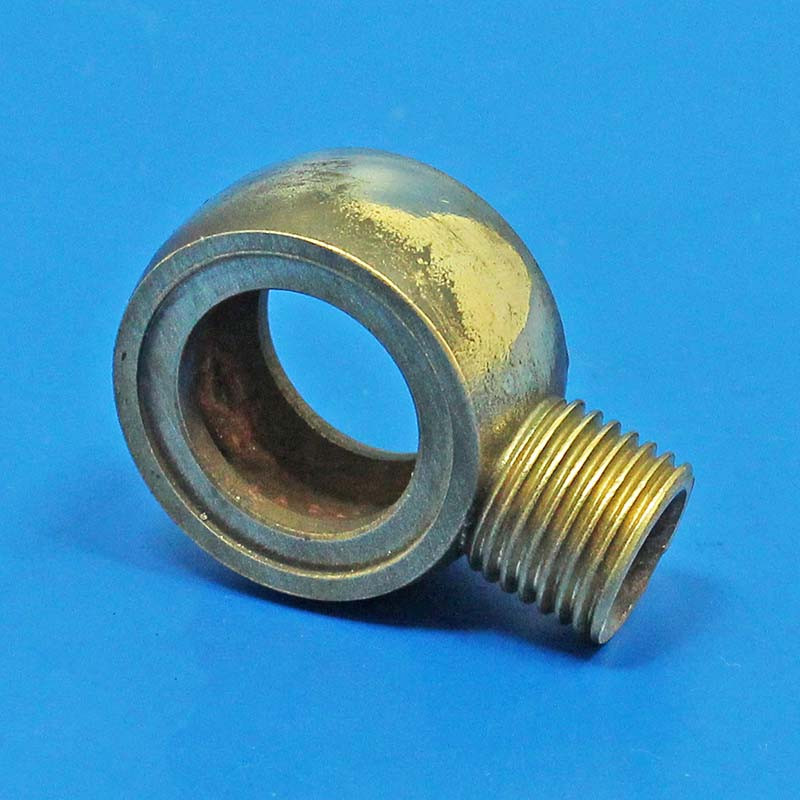

Male threaded type banjo for SU type carburetters - with 1/4" BSP male thread with 60 degree cone for solder nut and nipple connection. Please see part numbers CA121 for 1/4" BSPP nut and either CA126 solder nipple for 1/4" OD pipe, or CA127 for solder nipple for 5/16" OD pipe .Machined brass with silver soldered threaded connection. Recessed sealing face outer diameter 22.25mm, flat sealing face outer diameter 25.5mm 16.9mm bore.
